HKD REAL TIME CLOCK-DS1302

Name: HKD REAL TIME CLOCK-DS1302 - Communica [Part No: HKD REAL TIME CLOCK-DS1302]
Brand: Communica
SKU: HKD REAL TIME CLOCK-DS1302
Price: 13.04 ZAR
Availability: OutOfStock

SKU: HKD REAL TIME CLOCK-DS1302

BRAND: Communica

Sold Out
R 15.00_{(inc VAT)}
R 13.04_{(ex VAT)}

Collections: IoT, Internet of things

Type: Sensors

Category: Iot, Real Time Clock Module

Real Time Clock-Using Dallas DS1302. CR2032 Battery Not Included

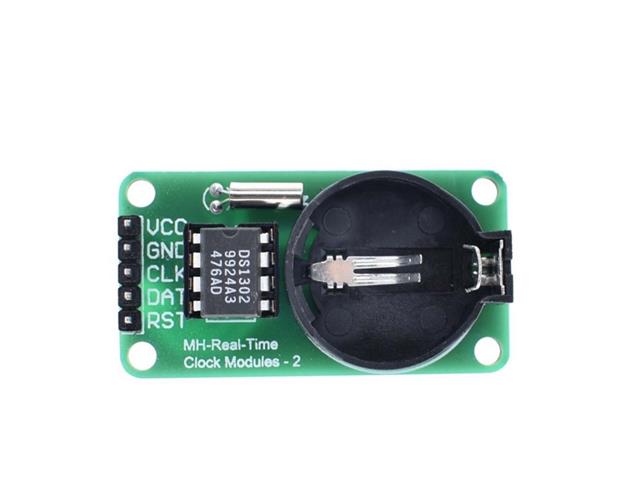

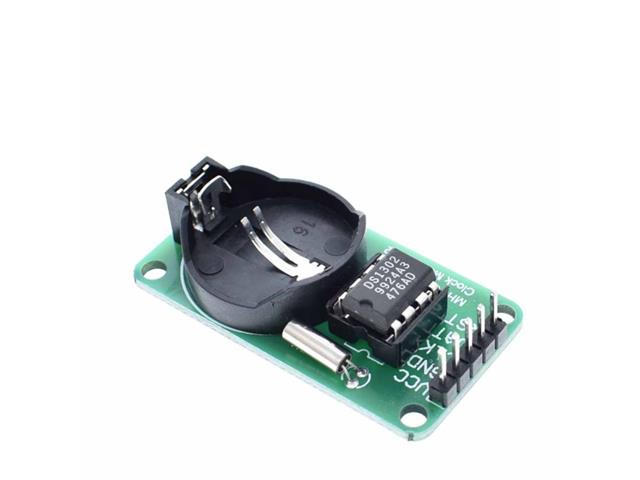

DS1302 Real Time Clock Module

Specifications

PCB a single panel, size: 42mm * 24mm * 12mm(max)
with 4 holes, about 3.1mm in diameter
Color: green (as the picture shows)
genuine spare battery for the celestial sphere CR2032, Voltage 3V, current is 260mAh, non-rechargeable batteries.
Crystal 32.768KHz, matching capacitance 6pF, size 2 * 6mm
DS1302 made large 8-pin DIP chip, chip, IC Block below for easy replacement and plug the chip
module operating voltage compatible 3.3V/5V, 5V and 3.3V microcontrollers can be connected with Operating temperature: 0-- 70

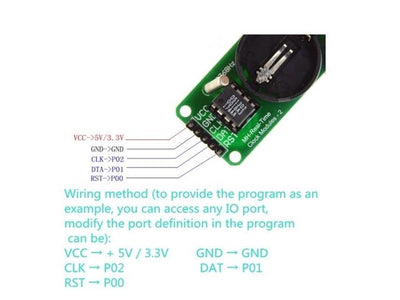

Wiring (to provide the program, for example, can take any IO port, the port defined in the program can be modified):
- VCC → +5 V/3.3V
- GND → GND
- CLK → P02
- DAT → P01
- RST → P00
1.51 MCU P0 port requires a pull-up, if your single-chip pull-up resistor is not connected, you can port the data cable to the other
2VCC and GND must not be reversed, or it will burn the chip

Additional Information

Device	Clock Module
Type	DS1302 \| Real Time

Upgrade your projects with the HKD Real Time Clock DS1302 module, a reliable solution for precise timekeeping. Compatible with 3.3V/5V microcontrollers, this easy-to-install clock ensures accurate timing for your electronics, enhancing functionality and performance. Ideal for DIY enthusiasts and professionals alike, it’s the perfect addition to your tech toolkit!
