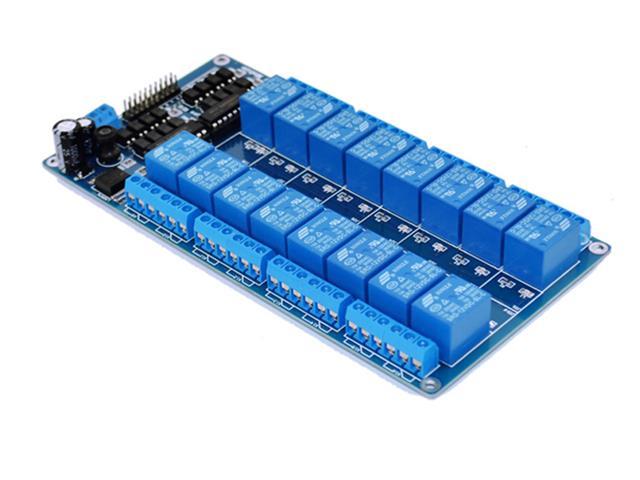

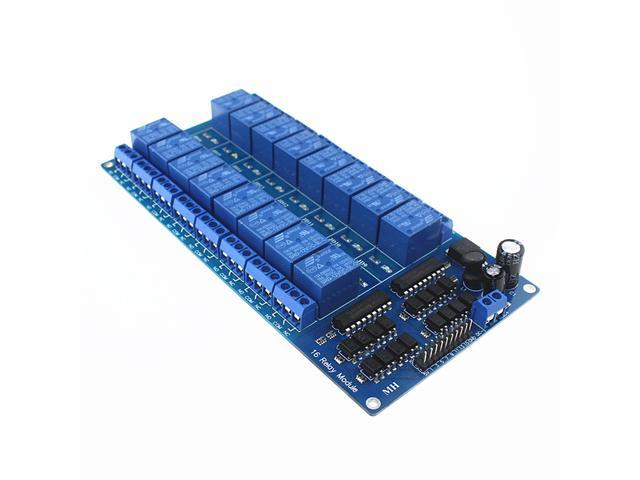

HKD RELAY BOARD 16CH 5V

Name: HKD RELAY BOARD 16CH 5V - Communica [Part No: HKD RELAY BOARD 16CH 5V]
Brand: Communica
SKU: HKD RELAY BOARD 16CH 5V
Price: 165.22 ZAR
Availability: InStock

SKU: HKD RELAY BOARD 16CH 5V

BRAND: Communica

R 190.00_{(inc VAT)}
R 165.22_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: IoT, Internet of things

Type: Power, Battery & Solar

Category: 16 Channel Relay Boards, Iot

Compatible with Arduino 5V/10A 16CH Relay Module with N/O and N/C Contacts with Opto Isolated I/P. (Also for 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL Logic).

5V/10A 16CH Relay Module

Features

This is a 5V 16-Channel Relay interface board, Be able to control various appliances, and other equipment's with large current. It can be controlled directly by Micro-controller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).
5V 16-Channel Relay interface board, and each one needs 50-60mA Driver Current.
Equipped with high-current relay, AC250V 10A ; DC30V 10A.
Standard interface that can be controlled directly by microcontroller.
Indication LED’s for Relay output status.
High Level Trigger.

Specifications

Number of channels : 16
Supply voltage : 5V DC
Switched voltage : max. 30V DC, max. 250V AC
Contact current max. : 10A
Gross weight : 201.2 g

Additional Information

Device	Relay Module
Type	5V/10A \| 16CH

Control your appliances effortlessly with the HKD Relay Board 16CH 5V. This powerful 16-channel relay module supports up to 10A, making it perfect for high-current devices. Easily integrate with Arduino and other microcontrollers for seamless automation and enhanced functionality. Upgrade your projects with reliable performance and efficient control today!
