HKD STEPPER 5V +ULN2003 BOARD

SKU: HKD STEPPER 5V +ULN2003 BOARD

BRAND: Communica

In Stock
R 39.00_{(inc VAT)}
R 33.91_{(ex VAT)}

Collections: 3D Printing & Accessories, DIY Kits, Robotics

Type: Motors, Motor Drivers & Controllers

Category: Stepper Motor

8BYJ-48 5V Stepper Motor With ULN2003 Driver Board. Step Torque Angle: 5.625/64. Reduction Ratio: 1/64.

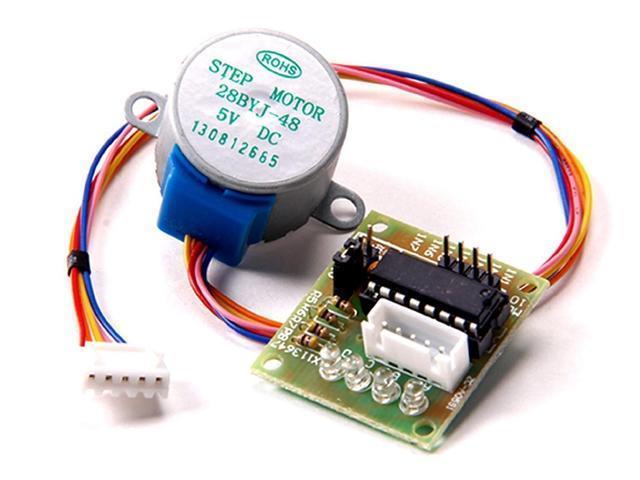

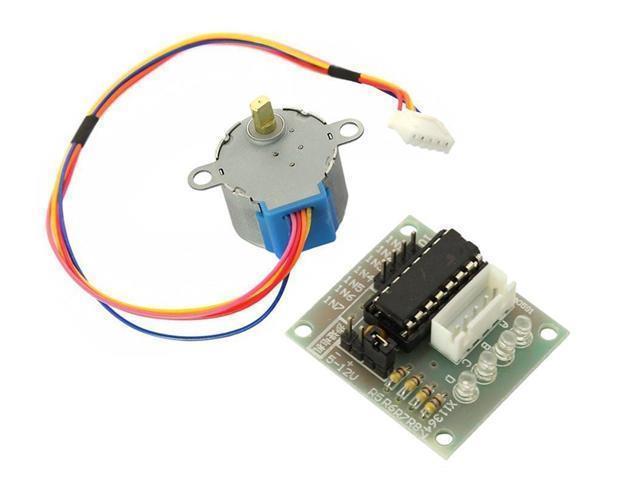

Stepper Motor With ULN2003 Driver Board

Overview

Stepper motor with a standard interface, when used directly pluggable. 5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase, support the development board，With convenient use, direct docking.

Specifications

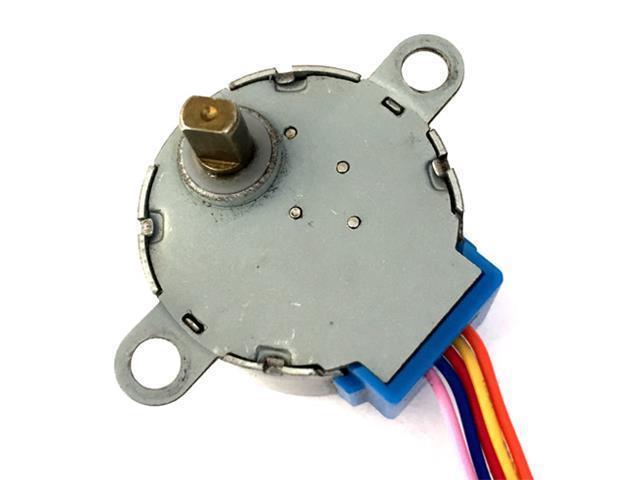

Deceleration Stepper Motor:

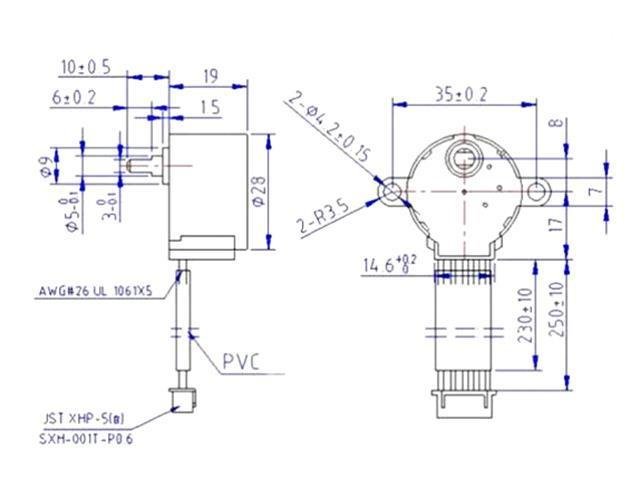

- Diameter : 28mm
- Voltage : 5V.
- Step Torque Angle : 5.625/64.
- Reduction Ratio : 1/64.
DC Resistance : 200±7% (25)
Insulation Resistance : >10M (500V)
Dielectric Strength : 600V AC / 1mA / 1s
Insulation Grade : A
No-load Pull in Frequency : >600Hz
No-load Pull out Frequency : >1000Hz
Pull in Torque : >34.3mN.m(120Hz)
Detent Torque : >34.3mN.m
Temperature Rise : <40K(120Hz)
Noise : <40dB (120Hz, No load, 10cm)
Board Size : Approx. 29 x 21 mm

Additional Information

Device

Driver Board

Type

Stepper Motor | With ULN2003

References

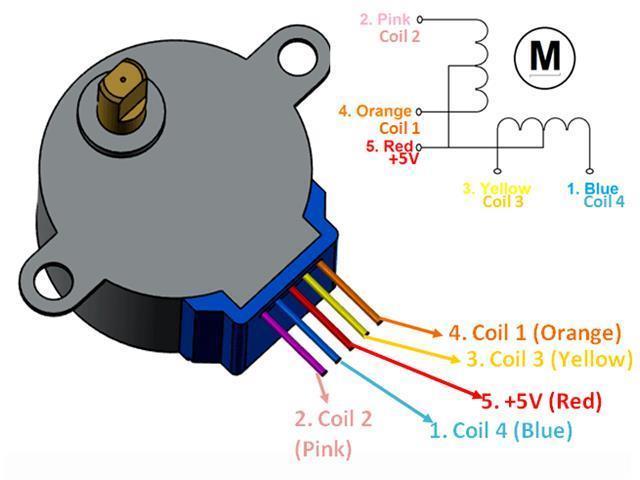

Wiring and How To Use
