The M542 V2.0 is a high performance microstepping drive based on pure-sinusoidal current control technology. Owing to the above technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of the drives in the markets. It is suitable for driving2-phase and 4-phase hybrid stepping motors.
Features
High performance : Cost-effective
Supply Voltage up to : +50 VDC
Output Current up to 4.2A
Self-Adjustment Technology
Pure-Sinusoidal Current Control Technology
Pulse Input Frequency up to 300 KHz
TTL Compatible and Optically Isolated Input
Automatic Idle-Current Reduction
15 Selectable Resolutions in Decimal and Binary, up to 25,600 steps/rev
Suitable for a wide range of stepping motors, from NEMA size 17 to 34. It can be used in various kinds of machines, such as X-Y tables, engraving machines, labeling machines, laser cutters, pick-place devices, and so on. Particularly adapt to the applications desired with low noise, low heating, high speed and high precision.
Specifications
Power supply: DC 24-60 (V)
Current maximum: 4.5A
Output phase current: 1.5A-4.5A
Logic input current: 10-20mA
Operating temperature: -15°—+45°
Size: 11.7 x 8.5 cm (about 4.61 x 3.35 inch)
Additional Information
Device
Motor Driver
Type
2 and 4 Phase | Stepper

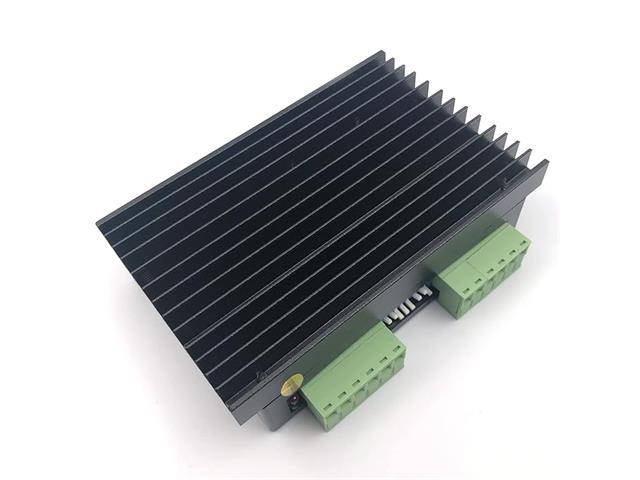

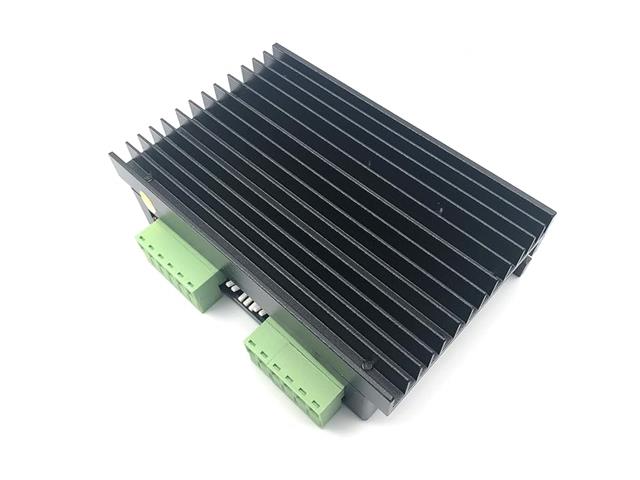

Unlock your machine's potential with the HKD STEPPER MOTOR DRIVER M542. Designed for 2 and 4-phase stepper motors, this high-performance driver offers smooth, quiet operation and exceptional speed control. Experience reduced heat and noise with advanced pure-sinusoidal current control, making it ideal for precision applications like engraving and laser cutting. Elevate your projects with this cost-effective, reliable motor driver today!
