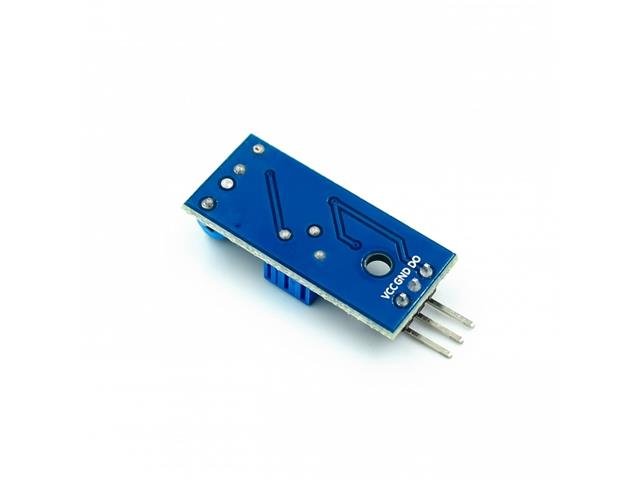

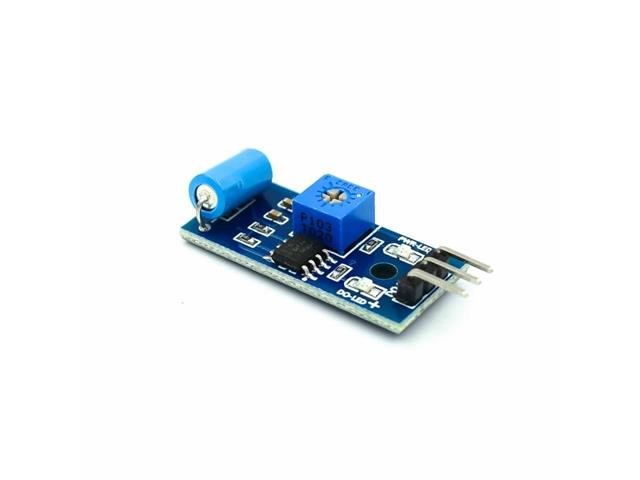

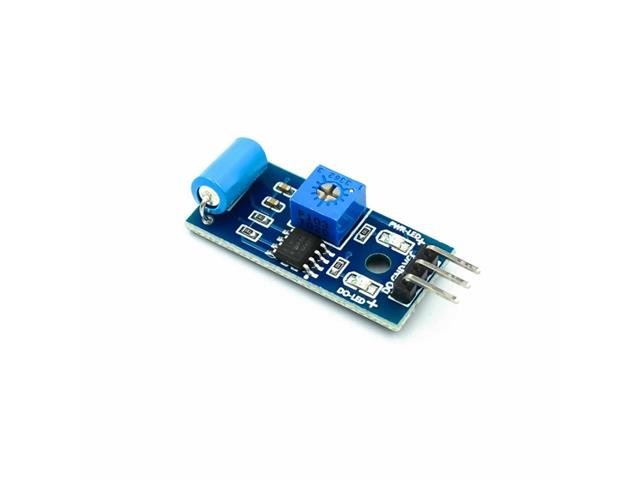

HKD SW-420 VIBRATION MODULE

Name: HKD SW-420 VIBRATION MODULE - Communica [Part No: HKD SW-420 VIBRATION MODULE]
Brand: Communica
SKU: HKD SW-420 VIBRATION MODULE
Price: 15.65 ZAR
Availability: InStock

SKU: HKD SW-420 VIBRATION MODULE

BRAND: Communica

In Stock
R 18.00_{(inc VAT)}
R 15.65_{(ex VAT)}

Collections: IoT, Internet of things

Type: Sensors

Category: Iot, Vibration Sensors

ARD Compatible Digital Vibration Sensor Module using LM393 Comparator. Normally Closed

Digital Vibration Sensor Module

Overview

If the module does not vibrate, the vibration switch circuit is closed - low output, the green indicator light is on. On vibration the switch momentary disconnects, output is driven high, the green light goes off. The module can be directly connected to a microcontroller, which will detect high or low levels, thereby detecting whether the module's environment is vibrating, can play a role in an alarm.

Features

Note:

Power direction cannot be reversed otherwise it is possible to burn the chip
Signal LED light is output Low, signal LED OFF output is High

Application:

Smart Car, Earthquake alarm, Motorcycle Alarm, Theft alarm

Package includes:

1 x Vibration Sensor Module

Specifications

SW-420 normally closed type vibration sensor
Comparator Output, clean signal, good waveform, strong driving ability, >15mA
Working voltage : 3.3V ~ 5V
Output Format : Digital Switching Output (0 and 1)
Using a Wide Voltage LM393 Comparator
Mounting Holes for Easy Installation
Small PCB Size : 3.2 x 1.4cm

Additional Information

Device	Sensor Module
Type	Digital \| Vibration
