HKD TB6560 STEPPER DRIVE 3,5AMAX

Name: HKD TB6560 STEPPER DRIVE 3,5AMAX - Communica [Part No: HKD TB6560 STEPPER DRIVE 3,5AMAX]
Brand: Communica
SKU: HKD TB6560 STEPPER DRIVE 3,5AMAX
Price: 143.48 ZAR
Availability: OutOfStock

SKU: HKD TB6560 STEPPER DRIVE 3,5AMAX

BRAND: Communica

Sold Out
R 165.00_{(inc VAT)}
R 143.48_{(ex VAT)}

Collections: 3D Printing & Accessories, IoT, Internet of things

Type: 3D & CNC Controllers & Shields

Category: Iot, Stepper Drivers

TB6560 3A Stepper Motor Driver Board Single-Axis. VSS=10-35VDC. Low Voltage Shutdown and Over Current Protection

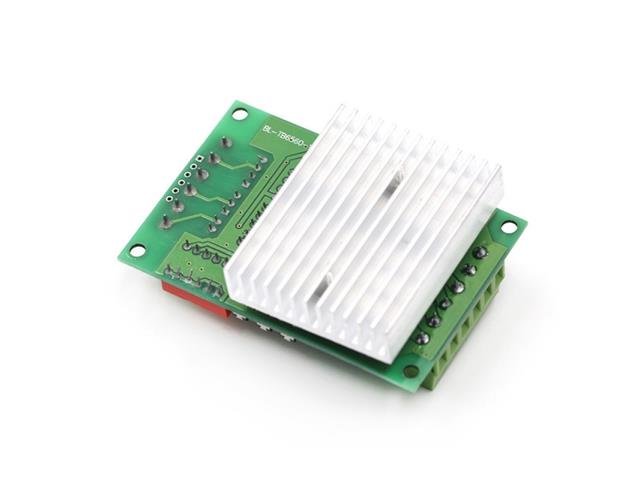

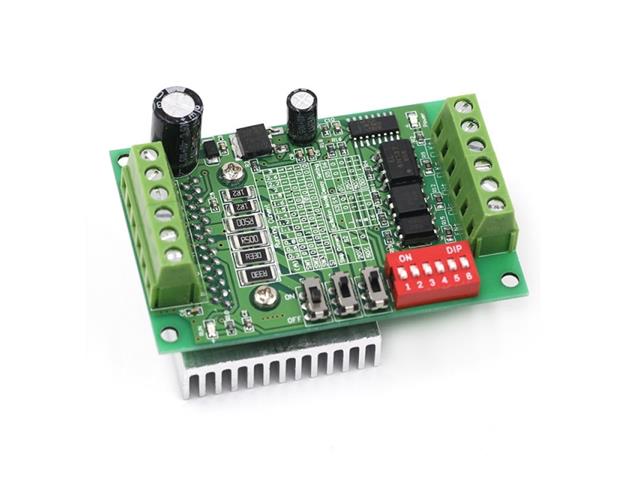

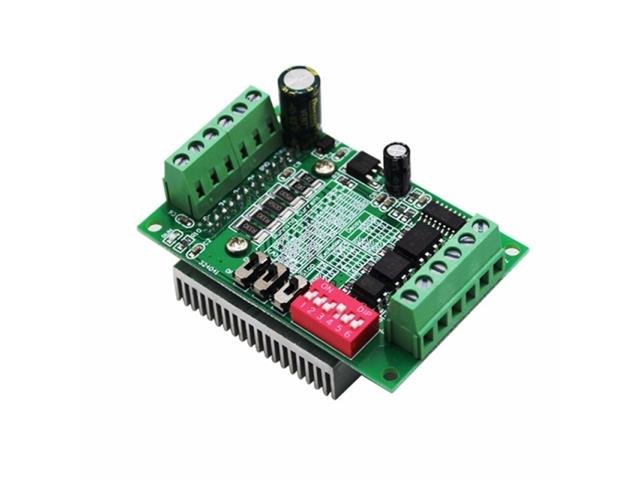

TB6560 3A Stepper Motor Driver Board

Features

Current level by adjustable to meet your various application requirements.
Automatic semi-flow adjustable.
Using 6N137 high-speed optical coupling to ensure high speed without losing step.
Board printed setup instructions, can use without a use manual
Using thick fine-toothed radiator, good heat dissipation.

Specifications

Working voltage DC 10V-35V. Recommend the use of switching power supply DC24V.
Using 6N137 high-speed optical coupling to maintain high speed without losing step.
Toshiba TB6560AHQ new original chip, low-pressure shut-off, overheating and over-current protection circuit parking to ensure optimal performance.
Rated maximum output: ± 3A, peak 3.5A.
3A fit within the stepper 42,57 with two-phase / four-phase / four-wire / six-wire stepper motor , not suitable for more than 3A stepper motor.
Automatic half current function.
Segments: full step, half step, step 1/8, 1/16 steps, up to 16 segments.
Dimensions : (length) 75 x 50 (width) (height) 35 (mm)

Additional Information

Device	Driver Board
Type	TB6560 \| 3A \| Stepper Motor
References	How to wire and Datasheet Tutorial to use together with Arduino
