HKD TIMER RELAY BOARD 12V 0-10S

Name: HKD TIMER RELAY BOARD 12V 0-10S - Communica [Part No: HKD TIMER RELAY BOARD 12V 0-10S]
Brand: Communica
SKU: HKD TIMER RELAY BOARD 12V 0-10S
Price: 19.13 ZAR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: HKD TIMER RELAY BOARD 12V 0-10S

BRAND: Communica

R 22.00_{(inc VAT)}
R 19.13_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: IoT, Internet of things

Type: Breakout boards / Shields / Modules

Category: Iot, Timer Relay Boards

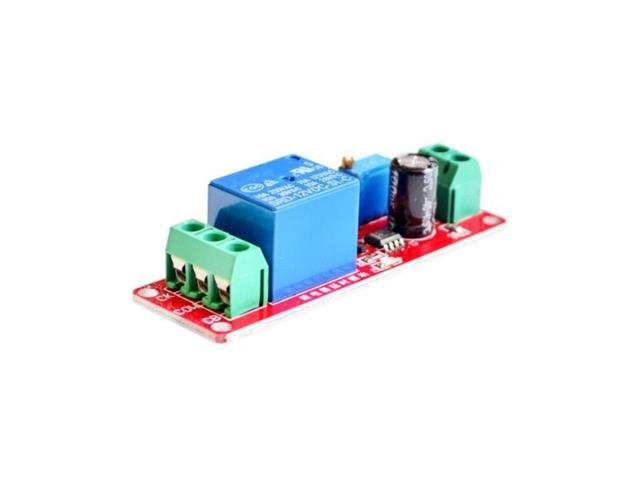

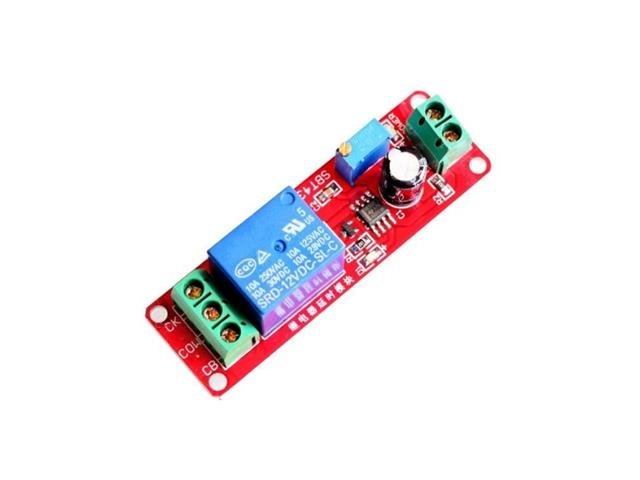

Time Delay Relay Board-12V. Adjustable 1 Sec to 10 Sec. 250VAC/10A & 30VDC/10A

Time Delay Relay Board

Features

Timing from Microseconds to HOURS
Simple Circuitry
Precision Pulse Generation / Timing,
FMAX = 500 KHz
Use a single 4 to 16 VDC supply
Excellent temperature stability 0.005% / °C
Adjustable Duty Cycle
Countless Application and Information Sources

Chip (NE555) Characteristic:

When unconnected with the supply power, the state of the module is "NO" [ normal open ], CB and COM are conductive. CK and COM are unconductive.
When connected with the supply power, delay for 0-10s, the module will in the state of "NC" [ normal closed ], CB and COM are unconductive, CK and COM is conductive

Specifications

Module Properties : NE555 chip
Dimension : 77 (L) x 23 (W) x 18 (H) mm (with potentiometer)
Input voltage : DC12V
Adjustable time : 0 to 10sec
Control voltage : AC 0~250V / max. 10A, DC 0~30V / max. 10A
Max. loading : 2200W

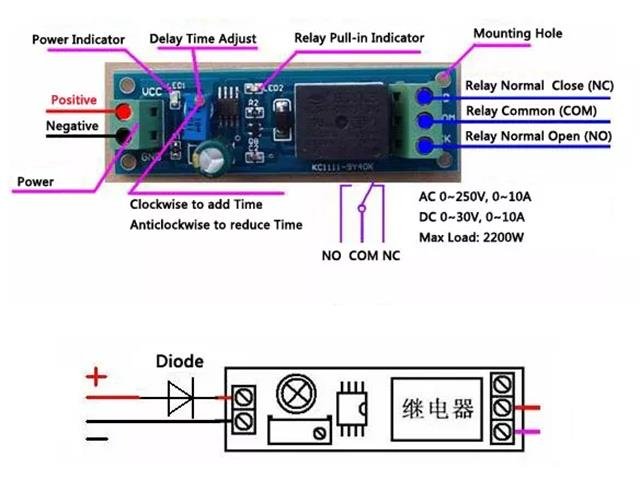

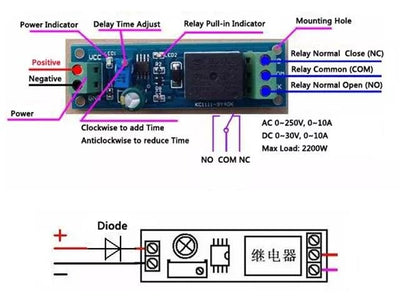

We suggest using a diode connected to the VCC in series, in order to prevent damaging the chip due to overvoltage or reverse polarity. (The board does not have a diode because relay would not activate if power used is very low)

Additional Information

Device	Relay Board
Type	Time Delay

Elevate your projects with the HKD Timer Relay Board, offering adjustable time delays from 0 to 10 seconds. This reliable 12V relay board features high precision and excellent temperature stability, making it perfect for various applications. Enjoy seamless control with robust performance, handling up to 2200W, while its compact design ensures easy integration into your setup.
