HKD WEMOS LOLIN ESP32

SKU: HKD WEMOS LOLIN ESP32

BRAND: Communica


The WeMos LOLIN32 is a Development Board Built Around The ESP-WROOM-32 Microcontroller. It Boasts 4MB of Memory and Offers WiFi, Bluetooth and Lipo Battery Connector. THIS ITEM WILL FIT IN BDD ESP32 SCREW TERM B/OUT BOARD

Wemos LoLin32 ESP32

Overview

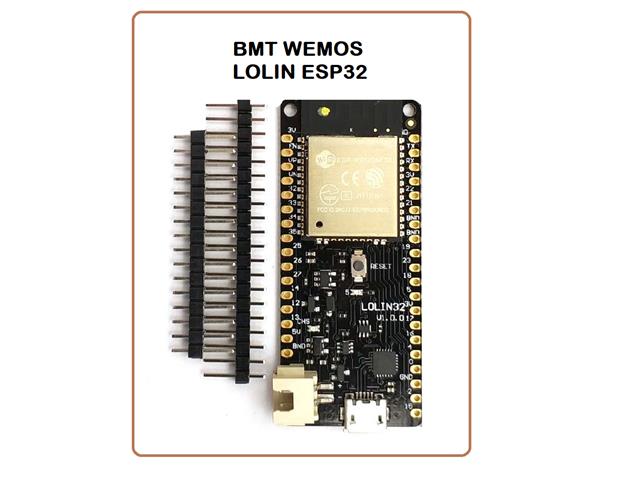

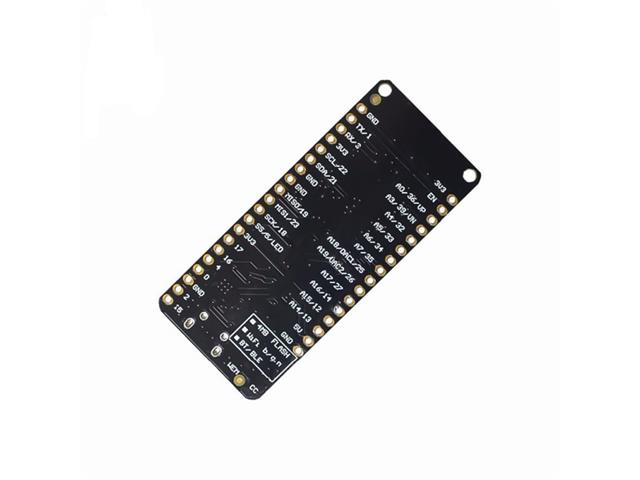

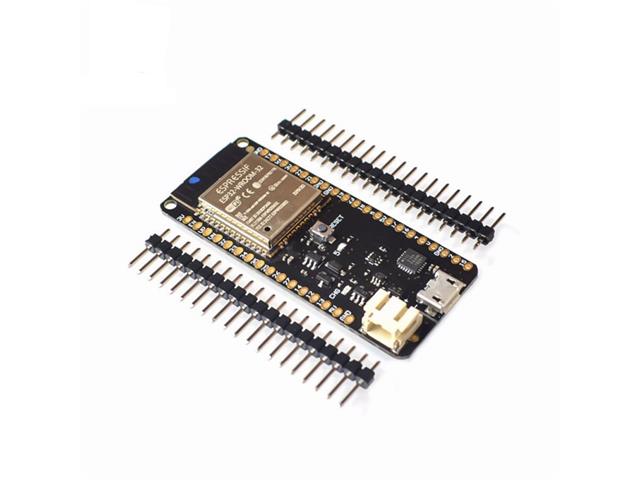

Wemos LoLin32 ESP32, WiFi + Bluetooth + LiPo battery connector

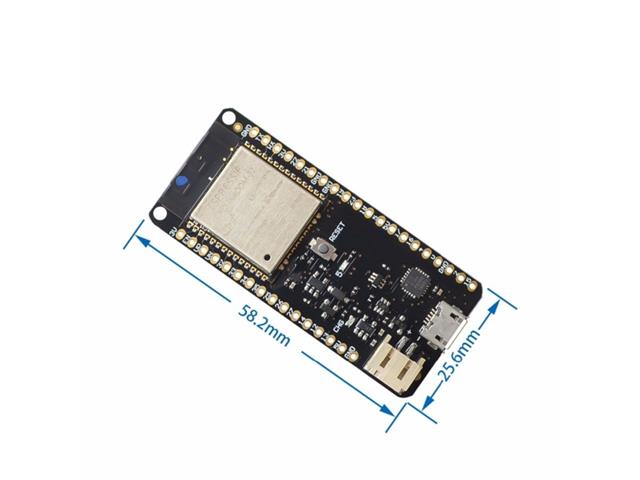

The Wemos LoLin32 is a development board built around the Espressif ESP-WROOM-32 microcontroller. It boasts 4MB of memory and offers WiFi and Bluetooth connectivity. The Wemos LoLin32 has the particularity to propose a connector for LiPo battery. The connector is JST XH2-2.54mm. It has a key that prevents reverse polarity. Charging the battery and programming will be done using the usual micro-USB connector. Unlike the first ESP32 development boards, this board developed by Wemos.cc is narrower. It leaves a row of connectors on each side of the board free on the breadboard.

Specifications

  • ESP-WROOM-32 Module Specifications
  • ESP32 Module: ESP-WROOM-32 from Espressif.
  • 240MHz dual core microprocessor equipped with
  • 4MB SPI flash memory. Support up to 16MB of flash memory

Connectivity

  • WiFi 802.11 b / g / n.
  • Security WEP, WPA / WPA2 PSK / Enterprise.
  • Integrated cryptographic chip supporting AES / SHA2 / Elliptical Curve Cryptography / RSA-4096 algorithms
  • Maximum power for data transfer: 19.5 dBm@11b, 16.5 dBm@11g, 15.5 dBm@11n
  • Sensitivity max. reception: -97 dBm
  • Bluetooth 4.0 LE
  • 32 Inputs / Outputs
  • 26x Digital I / O (3.3V). All outputs can be PWM
  • 18x analog inputs
  • 3x UART
  • 3x SPI
  • 2x I2S
  • 2x DAC
  • 2x I2C
  • Sleep Mode Consumption: 5 μA
  • Integrated sensors
  • Hall Effect
  • 10x inputs for capacitive touch interface

Additional Information

Device WeMos LOLIN32
Type ESP-WROOM-32
References WEMOS LOLIN ESP32
