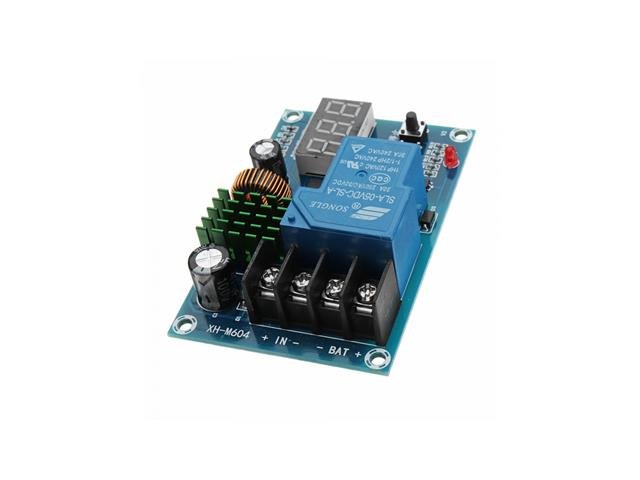

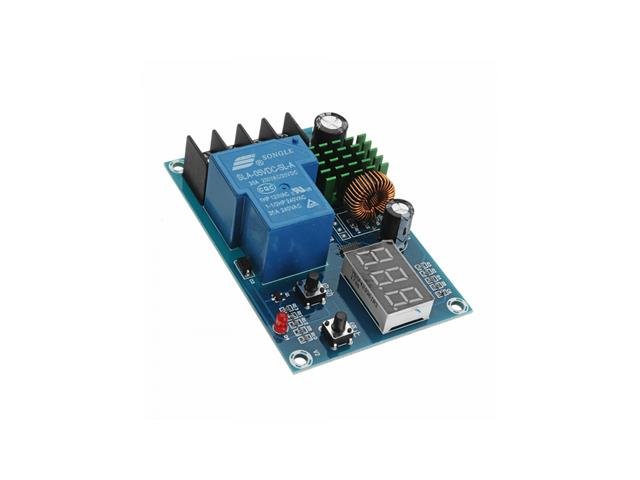

Lithium Battery Charge Control Board, 6 TO 60VDC, 30A
Overview

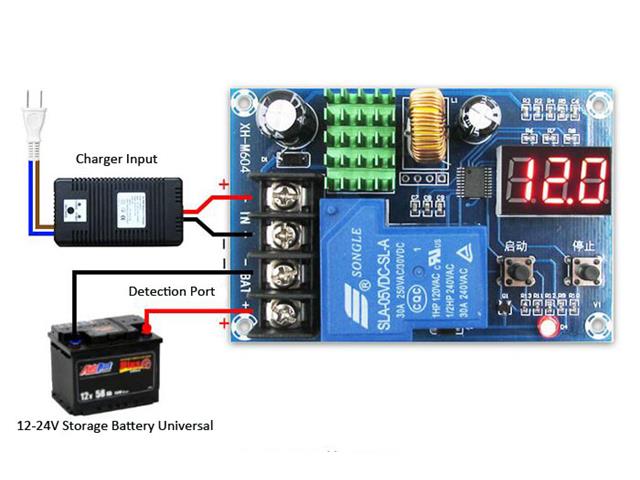

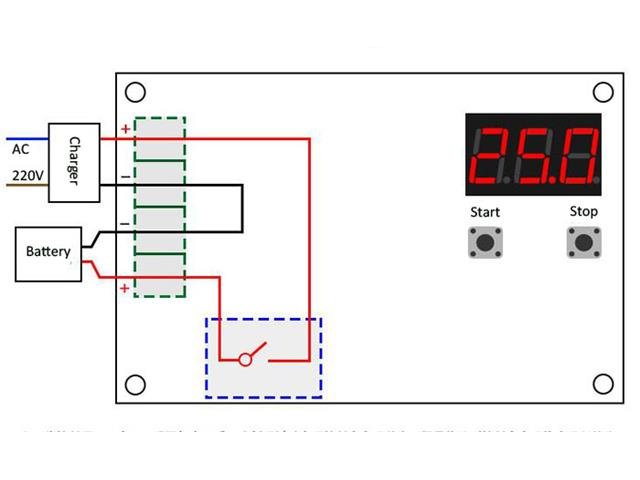

The XH-M604 Charge Module can be used to charge variety of battery types including, lithium, Lead-acid, nickel-cadmium, nickel-metal hydride, lithium-ion and polymer. The module can also be used for solar panel applications
Features
Instructions:

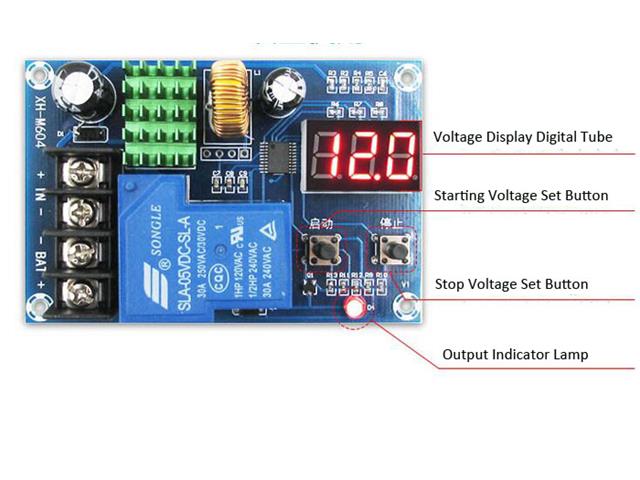

The start button plays the role of the up/increase button, and the stop button acts as the down/decrease button.
How to use:
Set the startup voltage: under the normal display voltage state, press the start voltage button once to display the start charging voltage. Press and hold the start button for 3 seconds, the digit flashes, and the start charging voltage value is set by the start and stop buttons.
Set the stop voltage: in the normal display voltage state, press the stop voltage button once to display the stop charging voltage. Long press the stop button for 3 seconds, the digit flashes, and the charging voltage value is stopped by the start and stop buttons.
Restore factory settings: press and hold the start / stop button at the same time when the power is on, the digital display 888, that means restore the factory settings.
Specifications
Model: XH-M604
Voltage: DC 6V-60V
Output current: 30A
Display Precision: 0.1V
Control Precision: 0.1V
Output Type: direct output
Voltage Tolerance: ±0.1V
Application Fields: 12-24V
Additional Information
Videos
Charge your batteries efficiently with the HKD XH-M604 DIGI BATT CONT, designed for 6-60V systems and 30A output. Perfect for lithium, lead-acid, and solar panel applications, this module ensures precise voltage control for optimal battery health. Enjoy user-friendly settings and reliable performance, making it a must-have for any charging setup.
