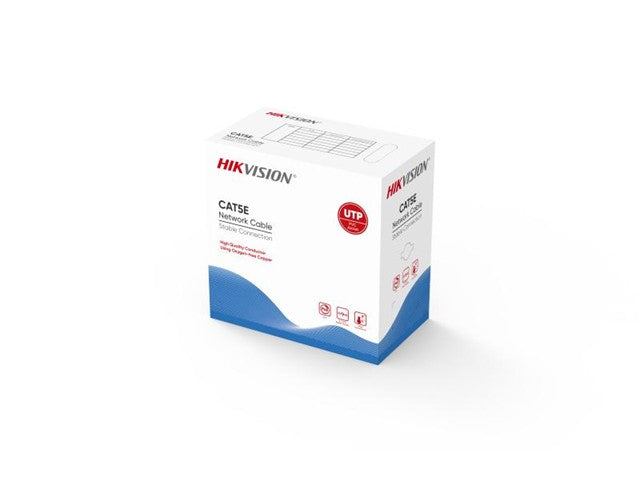

• Full diameter 305 m CAT5E network cable
• Excellent transmission performance using oxygen-free copper
• Quality verified by Fluke test
• Guaranteed long PoE transmission distance
• Great PVC flame resistance

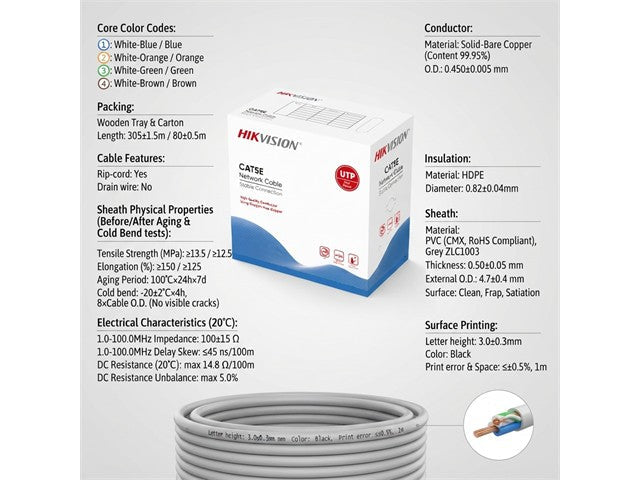

General

• Core Color : 1 White- Blue /Blue 2 White-Orange /Orange,3 White- Green /Green 4 White- Brown /Brown,
• Packing : Wooden Tray & Carton
• Carton Dimension : Per request
• Packing length : 305±1.5m/80±0.5m
• Rip-cord : Yes
• Drain wire : No
• Sheath Physical Properties : Before Aging Tensile Strength (Mpa) ≥13.5, Elongation(%) ≥150,Aging Period(℃×hrs) 100℃×24h×7d,After Aging Tensile Strength(Mpa) ≥12.5, Elongation(%) ≥125,Cold bend(-20±2℃×4h) 8×Cable O.D.，No visible cracks,
• Electrical Characteristics (20℃) : 1.0-100.0MHz Impedance(Ω) 100±15,1.0-100.0MHz Delay Shew (ns/100m) ≤45,DC Resistance Ω/100m) max 14.8,DC Conductor Resistance Unbalance(%) max 5.0,

Conductor

• Material : Solid-Bare Copper,Content 99.95%,
• Nom.O.D. : (mm) : 0.450±0.005

Insulation

• Material : HDPE
• Diameter : 0.82±0.04mm

Sheath

• Thickness : 0.50±0.05 mm
• External O.D.4.7±0.4 mm
• Surface : Clean,Frap,Satiation
• Material : PVC(complies RoHS),CMX
• Color : Grey ZLC1003

Surface Printing

• Letter height : 3.0±0.3mm
• Color : Black
• Print error & Space : ≤±0.5%，1m
