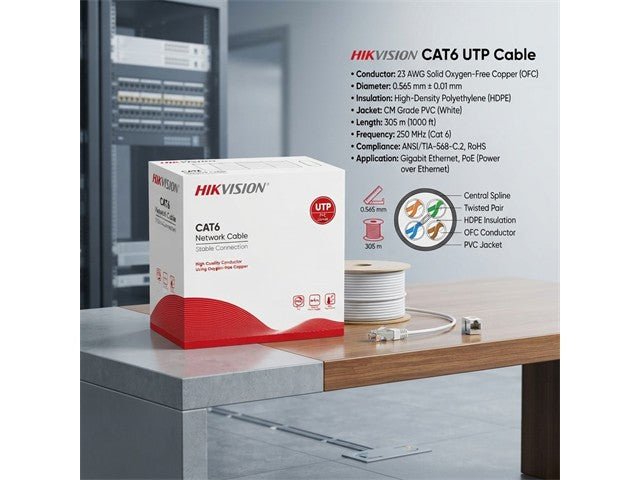

Hikvision Network Cable CAT6 UTP Solid Copper Orange 305m, Conductor:0.565mm 232AWG, Fire Resistant:CPR Eca/UL CM, Sheath Material:PVC, Insulation: HDPE & Diameter:1.02±0.05mm, Drain Wire: No, Quality Verified By Fluke Test
CAT6 UTP Solid Copper Network Cable
Feature(s)
- Stable electrical performance, compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801.
- Compliant with RoHS 2.0.
- Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
- Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
- Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
- Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
Specifications
General
- Category : Cat 6
- Structure : U/UTP
- Fire Resistance : CPR Fca
- Usage Scenario : Indoor
Conduct
- Conductor Material : Solid-Bare Copper
- Conductor Diameter : 0.515 ± 0.005 mm 24AWG
Insulation
- Insulation Diameter : 0.93 ± 0.05mm
Sheath
- Sheath Materia : lPVC
- Sheath Color : Grey, or orange
Structure
- Length : 305 ± 1.5 m
- Rip Cord : Yes
- Separator : Yes
Downloads
Additional Information
| Device |
Cable |
| Type |
CAT6 | UTP | Solid Copper | Network |
Upgrade your network with the HKV DS-1LN6-UU CAT6 UTP Solid Copper Cable. This high-performance 305m cable ensures stable connectivity, excellent PoE support, and fire resistance, making it ideal for indoor use. Enjoy reduced signal loss and superior durability, verified by Fluke testing, for reliable and efficient data transmission.
