• Stable electrical performance, compliant with ANSI/TIA-568.2-D, IEC61156, ISO/IEC11801.
• Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.
• Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.
• Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power (PoE).
• Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.
• Compliant with RoHS 2.0.

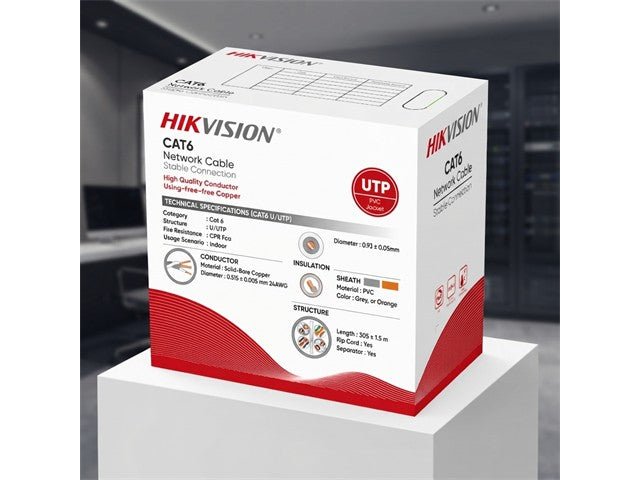

General

• Category : Cat 6
• Structure : U/UTP
• Fire Resistance : CPR Fca
• Usage Scenario : Indoor

Conduct

• Conductor Material : Solid-Bare Copper
• Conductor Diameter : 0.515 ± 0.005 mm 24AWG

Insulation

• Insulation Diameter : 0.93 ± 0.05mm

Sheath

• Sheath Materia : lPVC
• Sheath Color : Grey, or orange

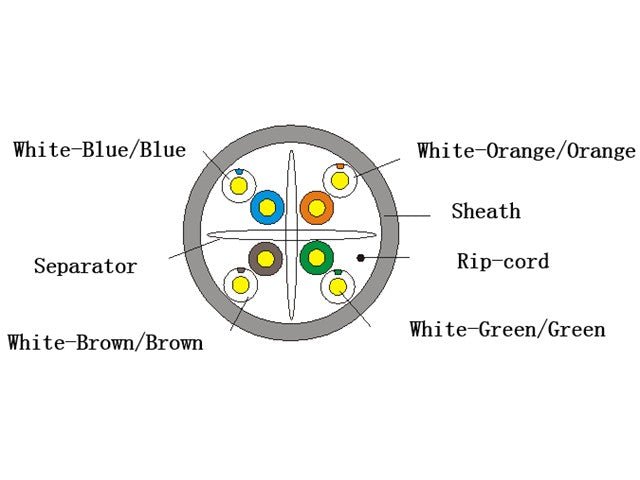

Structure

• Length : 305 ± 1.5 m
• Rip Cord : Yes
• Separator : Yes

1. Datasheet - HKV DS-1LN6UTC0
