Hikvision Dome Camera 2MP 4mm Lens, 30m IR, 1/2.9"CMOS, H2.65+, CBR/VBR, 32Kbps~8Mbps, Built-in Microphone, iVMS-4200, Hik-Connect, WDR, BLC/HLC/3D DNR, 1xRJ45 10M/100M, 12VDC 0.5A, PoE: IEEE 802.3af, IP67

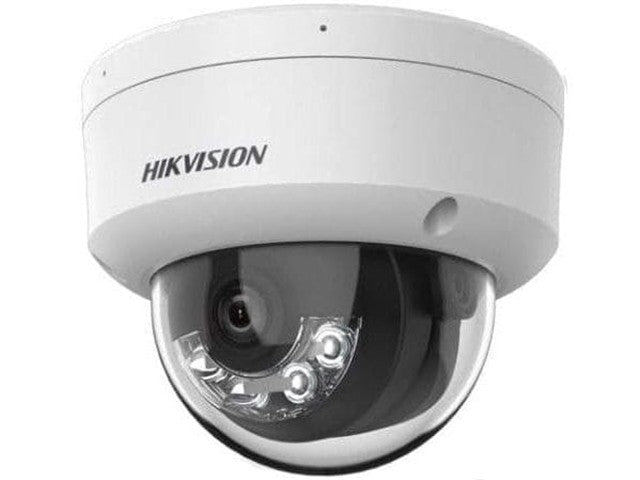

2 MP Fixed Dome Network Camera
Feature(s)
- High quality imaging with 2 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Water and dust resistant (IP67) and vandal proof (IK10)
- Support up to 256 GB SD card storage
Specifications
Camera
- Image Sensor : 1/2.7" Progressive Scan CMOS
- Max. Resolution : 1920 × 1080
- Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time : 1/3 s to 1/100,000 s
- Day & Night : IR Cut Filter
- Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens
- Focal Length & FOV : 4 mm: horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8°
- Lens Mount : M12
- Focus : Fixed
- Aperture : F1.6
Illuminator
- Supplement Light Range : Up to 30 m
- IR Wavelength : 850 nm
Video
- Main Stream
- 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
- 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
- Video Compression
- Main stream: H.265+/H.265/H.264+/H.264
- Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate : 32 Kbps to 8 Mbps
- H.264 Type : Baseline Profile/Main Profile/High Profile
- H.265 Type : Main Profile
- Region of Interest (ROI) : Support 1 fixed region for main stream
Network
- Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
- Simultaneous Live View : Up to 6 channels
- API : Open Network Video Interface, ISAPI
- User/Host : Up to 32 users. 3 levels: administrator, operator and user
- Network Storage : Support Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
- Client : iVMS-4200, Hik-Connect, Hik-Central
- Web Browser
- Plug-in required live view: IE 10+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
- Image Settings : Rotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
- Day/Night Switch : Day, Night, Auto, Schedule
- Image Enhancement : BLC, 3D DNR
- Wide Dynamic Range (WDR)120 dB
Interface
- Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage : Built-in Micro SD slot, up to 256 GB
- Audio-S: 1 input (line in), 1 output (line out)
- Alarm-S: 1 input, 1 output (max. 12 VDC, 30 mA)
- Reset Key : Yes
Event
- Basic Event : Motion detection,video tampering alarm
- Smart Event : Line crossing detection, intrusion detection
- Linkage : Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
General
- Power
- 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
- PoE: 802.3af, Class 3, 36 V to 57 V, 0.20 A to 0.15 A, max. 6.5 W
- Dimension : Ø110.8 mm × 84.7 mm (Ø 4.4" × 3.3")
- Package Dimension : 135 mm × 135 mm × 110 mm (5.3" × 5.3" × 4.3")
- Approx. 497 g (1.1 lb.)
- With Package Weight : Approx. 597 g (1.3 lb.)
- Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
- Language
- 33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function : One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
