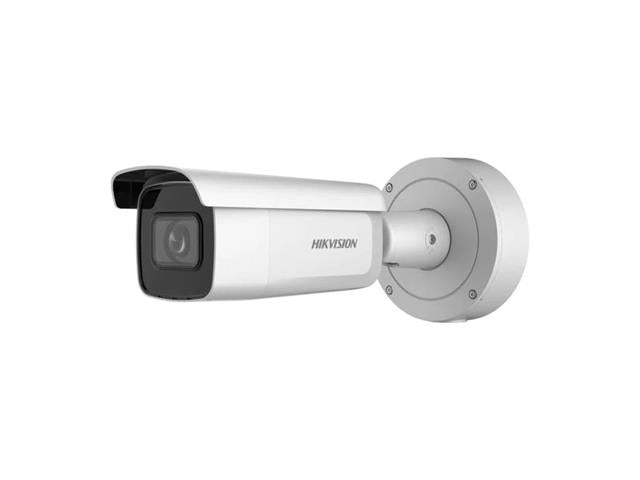

Hikvision AcuSense Motorized Bullet Network Camera 8MP, 2.8mm-12mm Lens, 60M IR, H.265+, CBR/VBR , BLC, HLC, 3D DNR, 1xRJ45 10M/100M , Motion & Line Crossing Detection, WDR:120dB, Micro SD Card Slot:Upto 512GB, 12VDC/PoE: 802.3at
AcuSense Motorized Bullet Network Camera
Feature(s)
- High quality imaging with 8 MP resolution
- Motorized varifocal lens for easy installation and monitoring
- Excellent low-light performance via powered-by- DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Audio and alarm interface available
- Water and dust resistant (IP66) and vandal proof (IK10)
Specifications
Camera
-
Image Sensor : 1/1.8" Progressive Scan CMOS
-
Max. Resolution : 3840 × 2160
-
Min. Illumination : Color: 0.003 Lux @ (F1.4, AGC ON), B/W: 0 Lux with IR
-
Shutter Time : 1/3 s to 1/100,000 s
-
Day & Night : IR cut filter
-
Angle Adjustment : Pan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
-
Lens TypeVarifocal lens, motorized lens, 2.8 to 12 mm
-
Focal Length & FOV2.8 to 12 mm, horizontal FOV 108° to 46°, vertical FOV 58° to 26°, diagonal FOV 127.4° to 52°
-
Lens MountØ14
-
Iris TypeFixed
-
ApertureF1.4
DORI
-
DORI : 2.8 to 12 mm
- Wide: D: 86.0 m, O: 34.1 m, R: 17.2 m, I: 8.6 m
- Tele: D: 214.0 m, O: 84.9 m, R: 42.8 m, I: 21.4 m
Illuminator
-
Supplement Light Type : IR
-
Supplement Light Range : Up to 60 m
-
Smart Supplement Light : Yes
-
IR Wavelength : 850 nm
Video
-
Main Stream
- 50 Hz: 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- 60 Hz: 24 fps (3840 × 2160)
- 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
-
Sub-Stream
- 50 Hz: 25 fps (640 × 480, 640 × 360)
- 60 Hz: 30 fps (640 × 480, 640 × 360)
-
Third Stream
- 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- *Third stream is supported under certain settings.
-
Video Compression
- Main stream: H.265/H.264/H.264+/H.265+
- Sub-stream: H.265/H.264/MJPEG
- Third stream: H.265/H.264
- *Third stream is supported under certain settings.
-
Video Bit Rate32 Kbps to 16 Mbps
-
H.264 Type : Baseline Profile/Main Profile/High Profile
-
H.265 Type : Main Profile
-
Bit Rate Control : CBR/VBR
-
Scalable Video Coding (SVC) : H.264 and H.265 encoding
-
Region Of Interest (ROI) : 1 fixed region for main stream and sub-stream
-
Target Cropping : Yes
Audio
-
Audio Type : Mono sound
-
Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
-
Audio Bit Rate : 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
-
Audio Sampling Rate : 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
-
Environment Noise Filtering : Yes
Network
-
Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
-
Simultaneous Live View : Up to 6 channels
-
API : Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
-
User/Host : Up to 32 users. 3 user levels: administrator, operator and user
-
Security : Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
-
Network Storage
- MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
- Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
-
Client : iVMS-4200, Hik-Connect, Hik-Central
-
Web Browser
- Plug-in required live view: IE 10+
- Plug-in free live view: Chrome 57.0+, Firefox 52.0+
- Local service: Chrome 57.0+, Firefox 52.0+
-
Image Parameters Switch : Yes
-
Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
-
Day/Night Switch : Day, Night, Auto, Schedule
-
Wide Dynamic Range (WDR) : 120 dB
-
SNR : ≥ 52 dB
-
Image Enhancement : BLC, HLC, 3D DNR
Interface
-
Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
-
On-Board Storage : Built-in micro SD slot, up to 256 GB
-
Audio
- 1 input (line in), 3.5 mm connector, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium;
- 1 output (line out), 3.5 mm connector, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
-
Alarm : 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
-
Reset Key : Yes
Event
-
Basic EventMotion detection (human and vehicle targets classification), video tampering alarm, exception
-
Smart Event : Line crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggering by specified target types (human and vehicle)) Scene change detection
-
Linkage : Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning
Deep Learning Function
General
-
Power
- 12 VDC, 1.08 A, max. 13 W, Ø5.5 mm coaxial power plug, reverse polarity protection
- PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W
-
Dimension : Ø144.1 mm × 345.7 mm (Ø5.7" × 13.6")
-
Package Dimension : 385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
-
Weight : Approx. 1430 g (3.2 lb.)
-
With Package Weight : Approx. 2490 g (5.5 lb.)
-
Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
Startup And Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
-
Language
- 33 languages : English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
-
General Function : Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
