Hikvision 3K ColorVu Smart Hybrid Light Fixed Bullet Camera 2.8mm Lens , 40m IR , PAL/NTSC , ICR/WDR , 2D DNR , Res: 2960×1665 , 24/7 Color Imaging with F1.0 Aperture , Switchable TVI/AHD/CVI/CVBS , Built-in MIC , Metal Case , 12VDC± 25% Max5.2W , IP67

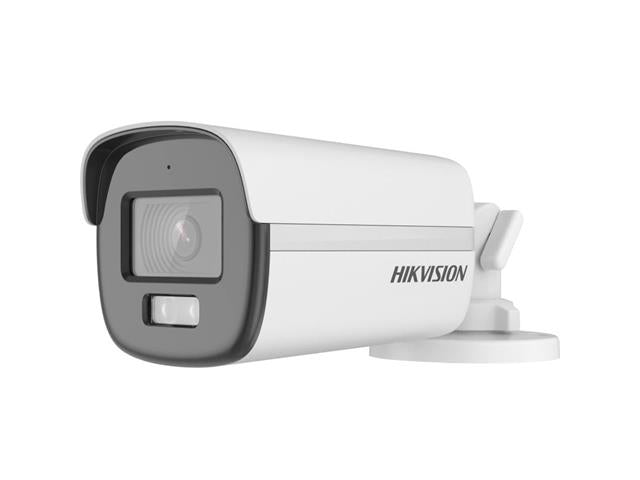

3K Smart Hybrid Light Fixed Bullet Camera
Feature(s)
- High quality imaging with 3K, 2960 × 1665 resolution
- 24/7 color imaging with F1.0 aperture
- 2.8 mm fixed focal lens
- Up to 40 m IR distance for bright night imaging
- Up to 40 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- High quality audio with audio over coaxial cable, built-in mic
- Water and dust resistant (IP67)
- Smart-Hybrid light, optimize your security with flexible lighting options

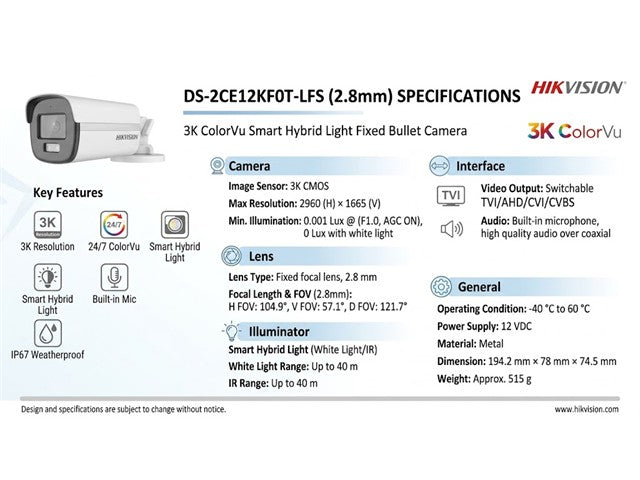

Specifications
Camera
- Image Sensor : 3K CMOS
- Signal System : PAL/NTSC
- Resolution : 2960 (H) × 1665 (V)
Frame Rate
- TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps
- AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps
- CVI: 4 MP @25 fps/30 fps
- CVBS: PAL/NTSC
- Min. Illumination : 0.001 Lux @(F1.0, AGC ON), 0 Lux with white light
- Shutter Time : PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Lens : 2.8 mm fixed focal lens
- Field of View : 2.8 mm, horizontal FOV: 110°, vertical FOV: 60°, diagonal FOV: 143°
- Lens Mount : M12
- Light Alarm : Solid Light Alarm (White Light)
- Day & Night : ICR
- WDR (Wide Dynamic Range) : Digital WDR
- Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
Microphone
- Pickup Distance : In a radius of up to 5 m
- Amount : 1
Illuminator
- Supplement Light Type : Smart,IR,White Light
- Supplement Light Range : IR: Up to 40 m,White Light: Up to 40 m
- White Light : Auto/OffImage Mode STD/HIGH-SAT/HIGHLIGHT
- AGC : Yes
- Day/Night Mode : Auto/Color
- White Balance : Auto/Outdoor/Global/Manual
- AE (Auto Exposure) Mode : DWDR,BLC,HLC,Global,HLS
- Noise Reduction : 2D DNR
- Language : English
- Function : Brightness,Smart IR,Sharpness,Anti-Banding,AGC
Interface
- Video Output : Switchable TVI/AHD/CVI/CVBS
- Audio In : Built-in mic
General
- Power : 12 VDC ± 25%, max.5.2 W,*You are recommended to use one power adapter to supply the power for one camera.
- Operating Conditions : -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensing)
- Protection Level : IP67
- Material : Metal
- Communication : HIKVISION-C
- Dimension : 194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93")
- Weight : Approx. 500 g (1.1 lb.)
