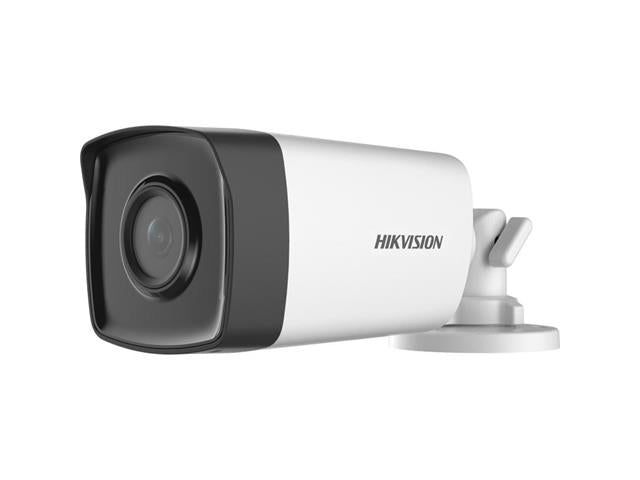

• High quality imaging with 2 MP, 1920 × 1080 resolution
• 3.6 mm fixed focal lens
• Up to 80 m IR distance for bright night imaging
• One port for four switchable signals (TVI/AHD/CVI/CVBS)
• Water and dust resistant (IP67)

Camera

• Image Sensor : 2 MP CMOS
• Max. Resolution : 1920 (H) × 1080 (V)
• Min. Illumination : 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time
  • PAL: 1/25 s to 1/50,000 s
  • NTSC: 1/30 s to 1/50,000 s
• Day & Night : ICR
• Angle Adjustment : Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
• Signal System : PAL/NTSC

Lens

• Lens Type : 3.6 mm fixed lens
• Focal Length & FOV : 3.6 mm, horizontal FOV: 79.6°, vertical FOV: 43.5°, diagonal FOV: 93.7°
• Lens Mount : M12


• Image Parameters Switch : STD/HIGH-SAT
• Image SettingsBrightness, Sharpness, Smart IR
• Frame Rate
  • TVI: 1080P@30fps, 1080P@25fps
  • CVI: 1080P@30fps, 1080P@25fps
  • AHD: 1080P@30fps, 1080P@25fps
  • CVBS: PAL/NTSC
• Day/Night Mode : Auto/Color/BW (Black and White)
• Wide Dynamic Range (WDR) : Digital WDR
• Image Enhancement : DWDR/BLC/HLC/Global
• Noise Reduction : Yes
• White BalanceAuto/Manual
• AGC : Yes

Interface

• Video Output : Switchable TVI/AHD/CVI/CVBS

General

• Material
  • Front Cover: Metal
  • Main Body: Plastic
• Dimension : 78.9 mm × 75.4 mm × 216.6 mm (3.10" × 2.97" × 8.53")
• Weight : Approx. 320 g (0.71 lb.)
• Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
• Communication : HIKVISION-C
• Language : English
• Power Supply : 12 VDC ± 25%
• Consumption : Max. 4.7 W
• IR Range : Up to 80 m

Approval

• Protection : IP67
