Hikvision ColorVu Turret Camera, 2MP 2.8mm Lens, 40M, Res:1920×1080, OSD menu, 3D DNR, true WDR, 4IN1 (4 signals switchable TVI/AHD/CVI/CVBS) , MAX:3W, Image Mode: STD/HIGH SAT, 12VDC, Brightness, Sharpness, 3D DNR, Mirror, Smart light, IP67

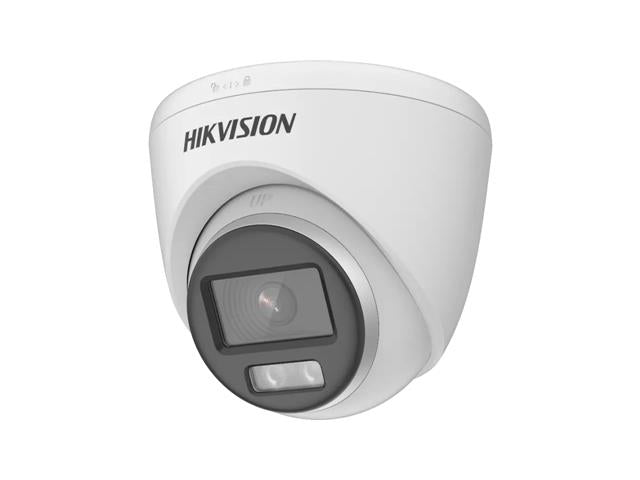

2 MP ColorVu Fixed Turret Camera
Feature(s)
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 24/7 color imaging with F1.0 aperture
- 3D DNR technology delivers clean and sharp images
- 2.8 mm fixed focal lens
- Up to 40 m white light distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)
- Water and dust resistant (IP67)
Specifications
Camera
- Image Sensor : 2 MP CMOS
- Signal System : PAL/NTSC
- Resolution : 1920 (H) × 1080 (V)
- Frame Rate
- TVI: 1080p@25fps/30fps
- CVI: 1080p@25fps/30fps
- AHD: 1080p@25fps/30fps
- CVBS: PAL/NTSC
- Min. Illumination : 0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
- Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Lens : 2.8 mm Fixed Lens
- Field of View : 2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°
- Lens Mount : M12
- Light Alarm : Solid Light Alarm (White Light)
- WDR (Wide Dynamic Range) : Digital WDR
- Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Menu
- White Light : Auto/Off
- Image Mode : STD/HIGH-SAT/HIGHLIGHT
- AGC : Yes
- Day/Night Mode : Color
- White Balance Auto/Manual
- AE (Auto Exposure) Mode : DWDR, BLC, HLC, Global
- Noise Reduction : 3D DNR/2D DNR
- Language : English
- Function : Brightness, Mirror, Sharpness, Anti-Banding, Smart Light
Interface
- Video Output Switchable TVI/AHD/CVI/CVBS
General
- Operating Conditions : -40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
- Power Supply :
- 12 VDC ± 25%
- *You are recommended to use one power adapter to supply the power for one camera.
- Consumption : Max. 4 W
- Protection Level : IP67
- Material : Main body: Metal, Enclosure: Plastic
- White Light Range : Up to 40 m
- Communication : HIKVISION-C
- Dimension : Φ 109.98 mm × 98.27 mm (Φ 4.33" × 3.87")
- Weight : Approx. 355 g (0.78 lb)
Downloads
Additional Information
| Device |
Camera |
| Type |
2 MP | ColorVu | Fixed Turret |
