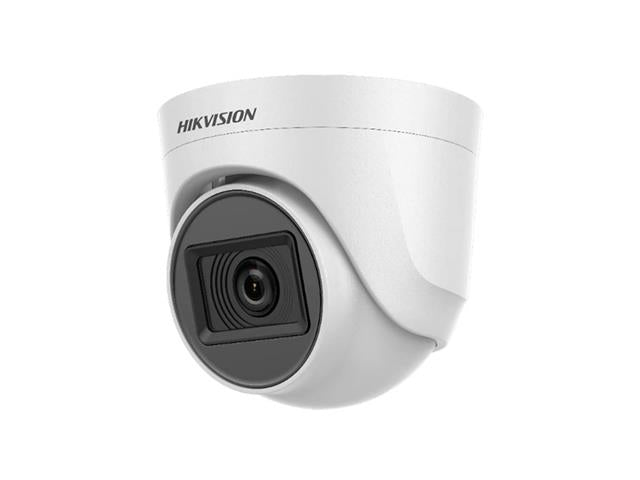

Hikvision Plastic Turret Indoor Camera 2MP 2.8mm Lens, 20m IR, Res:1920×1080, 2D DNR, STD/HIGH-SAT, WDR, (4 signals switchable TVI/AHD/CVI/CVBS), Image Mode: STD/HIGH SAT, 12VDC, Brightness, Sharpness, 3D DNR, Mirror, Smart light, IP67
Plastic Turret Indoor Camera
Feature(s)
- High quality imaging with 2 MP, 1920 × 1080 resolution
- 2.8 mm fixed lens
- Up to 20 m IR distance for bright night imaging
- One port for four switchable signals (TVI/AHD/CVI/CVBS)

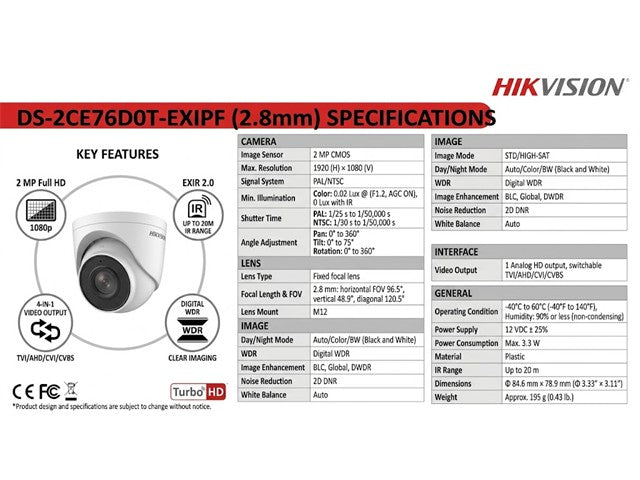

Specifications
Camera
- Image Sensor : 2 MP CMOS
- Signal System : PAL/NTSC
- Resolution : 1920 (H) × 1080 (V)
- Frame Rate
- TVI: 1080p@25fps/30fps
- AHD: 1080p@25fps/30fps
- CVI: 1080p@25fps/30fps
- CVBS: PAL/NTSC
- Min. Illumination : 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
- Shutter Time : PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
- Lens : 2.8 mm Fixed Lens
- Field of View : 2.8 mm, horizontal FOV: 102°, vertical FOV: 55°, diagonal FOV: 123°
- Lens Mount : M12
- Day & Night : ICR
- WDR (Wide Dynamic Range) : Digital WDR
- Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Menu
- Image Mode : STD/HIGH-SAT
- AGC : Yes
- Day/Night Mode : Auto/Color/BW (Black and White)
- White Balance : Auto
- AE (Auto Exposure) Mode DWDR, BLC, Global
- Noise Reduction 2D DNR
- Language : English
- Function : Brightness, Mirror, Smart IR, Sharpness
Interface
- Video Output : Switchable TVI/AHD/CVI/CVBS
General
- Operating Conditions : -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
- Power Supply : 12 VDC ± 25%
- Consumption : Max. 3.3 W
- Material : Plastic
- IR Range : Up to 20 m
- Communication : HIKVISION-C
- Dimension : Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
- Weight : Approx. 195g (0.43 lb.)
Downloads
Additional Information
| Device |
Camera |
| Type |
Plastic | Turret | Indoor |
Enhance your security with the HKV DS-2CE76D0T-EXIPF Indoor Camera. Featuring a 2MP resolution and a 2.8mm lens, this turret camera delivers crystal-clear imaging and vibrant night vision up to 20m. Its versatile signal compatibility and advanced noise reduction ensure optimal performance for any surveillance setup, making it the perfect choice for your home or business security needs.
