Hikvision Speed Dome Network PTZ 4MP, Focal Length:6.0~252mm, 400m IR , 1/1.8" CMOS , 42xOptical , 16xDigital , Max Res:2560×1440 , 32Kbps~16384Kbps , BLC/ HLC/3D DNR , 1xRJ45 10M/100M, WDR140dB, Face Capture, 24VAC (Max 62W), PoE 802.3 bt

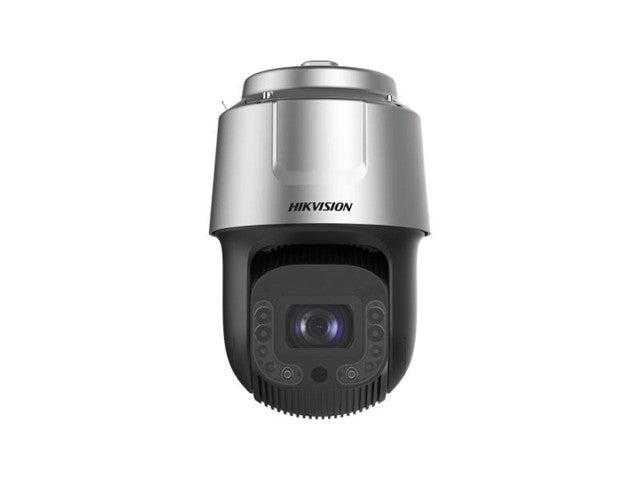

4 MP 42 × Network IR Speed Dome Camera
Feature(s)
- 1/1.8" progressive scan CMOS
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 150 dB AWDR technology
- 42× optical zoom and 16× digital zoom provide close up views over expansive areas
- Expansive night view with up to 400 m IR distance
- Water and dust resistant (IP67) and vandal resistant (IK10) excluding glass window
- Supports face capture to detect, capture, grade, and select faces in motion
- Supports road traffic to detect vehicles
- Smart Pan-Tilt Correction
Specifications
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.0003 Lux @ F1.2 (AGC ON)
B/W: 0.0001 Lux @ F1.2 (AGC ON)
0 Lux with IR |
| Shutter Speed |
1/1 s to 1/30,000 s |
| Slow Shutter |
Yes |
| Day/Night |
IR cut filter |
| Zoom |
42× optical, 16× digital |
| Max. Resolution |
2688 × 1520 |
Lens
| Focus |
Auto / Semi-auto / Manual / Rapid focus |
| Focal Length |
6.0 to 252 mm |
| Zoom Speed |
Approx. 4.5 s |
| FOV |
H: 56.6° to 1.7°
V: 33.7° to 0.9°
D: 63.4° to 1.9° |
| Aperture |
Max. F1.2 |
Illuminator
| Supplement Light Type |
IR |
| IR Distance |
Up to 400 m |
| Smart IR |
Yes |
PTZ
| Pan Range |
360° |
| Tilt Range |
−20° to 90° (auto flip) |
| Pan Speed |
0.1°–210°/s (preset 280°/s) |
| Tilt Speed |
0.1°–150°/s (preset 250°/s) |
| Presets |
300 |
| Patrols |
8 patrols, 32 presets each |
| Pattern Scan |
4 patterns (10+ min each) |
| Proportional Pan |
Yes |
| Power-off Memory |
Yes |
| 3D Positioning |
Yes |
| Scheduled Tasks |
Preset, patrol, scan, reboot, etc. |
Video
| Main Stream |
Up to 2688×1520 @ 50/60 fps
Up to 120 fps @ 1080p |
| Sub-Stream |
Up to 704×576 @ 25 fps |
| Third Stream |
Up to 1080p |
| Compression |
H.265+/H.265/H.264+/H.264 |
| Bitrate |
32 Kbps – 16384 Kbps |
| ROI |
8 regions per stream |
| SVC |
Supported |
Audio
| Compression |
G.711, G.722.1, G.726, MP2L2, PCM |
| Bitrate |
16–192 Kbps |
| Noise Filtering |
Yes |
Network
| Storage |
NAS (NFS, SMB), ANR |
| Protocols |
IPv4/IPv6, HTTPS, RTSP, SNMP, etc. |
| Users |
Up to 32 users |
| Live View |
Up to 20 channels |
| Security |
TLS 1.3, 802.1X, HTTPS, IP filter, TPM 2.0 |
| Compatibility |
HikCentral, iVMS-4200, Hik-Connect |
| Browser |
Chrome, Firefox, Safari |
| WDR |
150 dB |
| Image Settings |
Brightness, contrast, sharpness, WB |
| DNR |
3D DNR |
| Defog |
Optical |
| Stabilization |
Gyroscope EIS |
| Privacy Mask |
Up to 24 |
| SNR |
≥ 52 dB |
Storage & Interfaces
| SD Card |
Up to 1 TB |
| Ethernet |
1× RJ45 |
| Alarm I/O |
7 in / 2 out |
| Audio I/O |
1 in / 1 out |
| Video Output |
BNC |
| RS-485 |
Pelco-P/D |
Smart & AI Features
| Perimeter Protection |
Line crossing, intrusion |
| Face Capture |
Up to 30 faces simultaneously |
| Face Libraries |
Up to 150,000 faces |
| LPR |
≥98% recognition accuracy |
| Vehicle Detection |
Type, color, brand |
| Tracking |
Auto-tracking 3.0 |
| Multi-Target Detection |
Human, face, vehicle |
General
| Power |
36VDC or PoE++ (max 60 W) |
| Heater |
Yes |
| Operating Temp |
−40°C to 70°C |
| Protection |
IP67, IK10 |
| Dimensions |
Ø267 × 430 mm |
| Weight |
9.6 kg |
| Languages |
33 languages |
Certifications
| EMC |
CE, RCM, KC |
| Safety |
IEC 62368-1 |
| Environmental |
RoHS, WEEE |
| Protection |
6000V surge protection |
Downloads
Additional Information
| Device |
Camera |
| Type |
4 MP | 42 × | Network | IR | Speed | Dome |
