HKV DS-2FA1225-C4

SKU: HKV DS-2FA1225-C4

BRAND: Hikvision

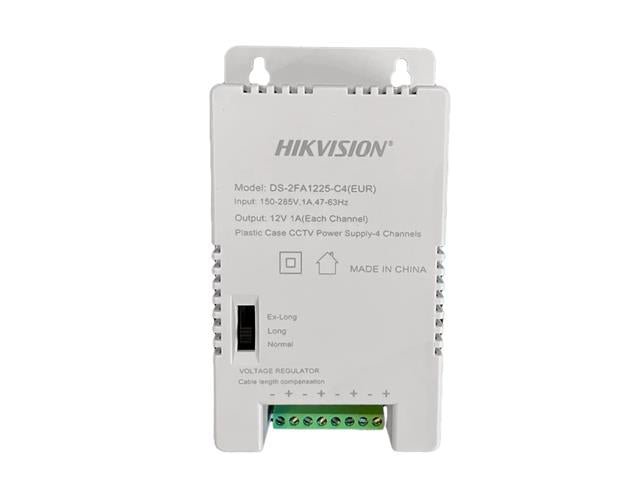

Hikvision 4CH Switch Mode Power Supply 48W, 12V 1A Per Channel 144×80x33mm

4CH Switch Mode Power Supply

Features

  • 48 W, 12 VDC/1 A per channel
  • Over current/short circuit/over voltage protection
  • Good EMC performance
  • Compact size; applicable to cameras
  • 150 to 285 VAC wide voltage input

Specifications

  • Appearance : White
  • Input : 150 to 285 VAC, 47 Hz to 63 Hz
  • Output : 12 VDC/1 A per channel
  • Cable Length Compensation
    • Normal: 12 VDC
    • Long: 13.5 VDC
    • Ex-Long: 15 VDC
  • Ripple & Noise : 0.15 Vp-p (150 mV)
  • AC Input Connector : C4
  • DC Output Connector : DC Plug: grid terminal
  • LED Indicator : Green
  • Operating Conditions : 0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)
  • Storage Conditions : -40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)
  • Dimension : 144 mm × 80 mm × 33 mm (5.67" × 3.15" × 1.30")

Downloads

Additional Information

Device Power Supply
Type 4CH | Switch Mode
