• Captures a large area and great details at the same time
• High quality imaging with 2 MP resolution
• Excellent low-light performance with powered-by-DarkFighter technology and ColorVu technology
• Secures an expansive area with 25× optical zoom and 16× digital zoom
• Supports WDR, HLC, BLC, 3D DNR, defog, regional exposure, regional focus
• Expansive night view with up to 100 m IR distance & 30 m white light
• Supports 12V DC & PoE+
• Focuses on human and vehicle targets classification based on deep learning

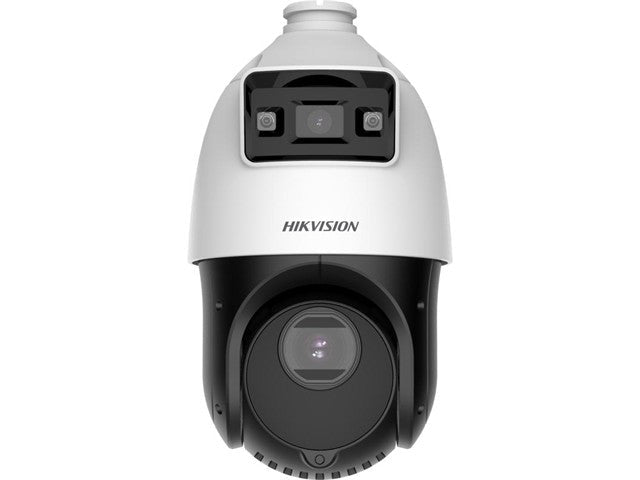

• Camera Type:Dual-channel (Bullet + PTZ)
• Image Sensor:
  • Bullet: 1/2.8" progressive scan CMOS
  • PTZ: 1/2.8" progressive scan CMOS
• Max Resolution:
  • Bullet: 1920 × 1080
  • PTZ: 1920 × 1080
• Minimum Illumination:
  • Bullet: 0.0005 Lux @ F1.0 (AGC ON), 0 Lux with white light
  • PTZ: 0.005 Lux color / 0.001 Lux B/W @ F1.6 (AGC ON), 0 Lux with IR
• Shutter Speed: 1 s to 1/30,000 s
• Day/Night:ICR
• Zoom:
  • PTZ: 25× optical, 16× digital
• Slow Shutter: Yes

Lens

• Focal Length:
  • Bullet: 2.8 mm
  • PTZ: 4.8–120 mm (25× optical)
• Field of View:
  • Bullet: 106.1° H / 56.8° V / 126.5° D
  • PTZ: 54.8°–2.8° H / 31.4°–1.5° V / 62.2°–3.2° D
• Focus: Semi-auto / Manual / Auto
• Aperture:
  • Bullet: F1.0
  • PTZ: F1.6
• Zoom Speed (PTZ): 3.6 s

Illuminator

• Supplement Light Type:
  • PTZ: IR
  • Bullet: White light
• Light Range:
  • PTZ: Up to 100 m
  • Bullet: Up to 30 m
• Smart Supplement Light: Yes

PTZ Functions

• Pan Range: 360°
• Tilt Range: -15° to 90° (auto flip)
• Pan Speed: 0.1°–80°/s (preset 80°/s)
• Tilt Speed: 0.1°–80°/s (preset 80°/s)
• Proportional Pan: Yes
• Presets: 300
• Preset Freezing: Yes
• Patrol Scan: 8 patrols, up to 32 presets each
• Pattern Scan: 4
• Park Action: Preset, pattern, patrol, auto, tilt, random, frame, panorama
• 3D Positioning: Yes
• PTZ Status Display: Yes
• Scheduled Tasks: Preset, scans, reboot, dome adjust, aux output
• Power-off Memory: Yes

Video

• Main Stream: Up to 1080p @ 25/30 fps (both channels)
• Sub-Stream: Up to D1/VGA/QVGA @ 25/30 fps
• Third Stream: Up to 1080p multiple resolutions @ 25/30 fps
• Compression:265 / H.264 / MJPEG
• Bit Rate: 32 kbps–16 Mbps
• 264 Profile: Baseline / Main / High
• 265 Profile: Main
• SVC: Yes
• ROI: 8 regions per stream

Audio

• Compression: G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC
• Bit Rate: 16–192 kbps
• Sampling Rate: 8–48 kHz
• Noise Filtering: Yes

Network

• Protocols: IPv4/IPv6, HTTP/HTTPS, RTSP, FTP, SMTP, SNMP, NTP, TCP/IP, UDP, DHCP, PPPoE, etc.
• Simultaneous Live View: 20
• API: ONVIF (S/G/T), ISAPI, SDK, ISUP
• Users: 32
• Security: HTTPS, 802.1X, IP filter, MAC binding
• Storage: NAS (NFS/SMB), ANR
• Client: iVMS-4200, Hik-Connect
• Browser: IE10+, Chrome 57+, Firefox 52+, Safari 12+


• WDR: 120 dB
• SNR: ≥52 dB
• Defog: Digital
• Image Stabilization: EIS
• Enhancements: BLC, HLC, 3D DNR
• Privacy Mask:
  • Bullet: 8 regions
  • PTZ: 24 regions
• Regional Focus/Exposure: Yes

Interfaces

• Ethernet: RJ45 10/100 Mbps
• Storage: MicroSD up to 256 GB
• Audio: 1 in / 1 out
• Alarm: 1 in / 1 out
• Reset: Yes

Events

• Basic: Motion detection, tamper, network/HDD errors, alarm I/O
• Smart: Intrusion, line crossing, region enter/exit, audio exception
• Linkage: FTP/NAS/email/alarm/PTZ actions
• Face Capture: PTZ only

General

• Power: 12 VDC, PoE+
• Dimensions: Ø166 × 375 mm
• Weight: Approx. 2.4 kg
• Material: ADC12
• Operating Temp: −30°C to 65°C (<90% RH)
• Functions: Mirror, watermark, password protection, IP filter
• Demist: Heated glass
• Max Power Consumption: 24 W
• Protection: IP66, 6000 V lightning & surge protection
