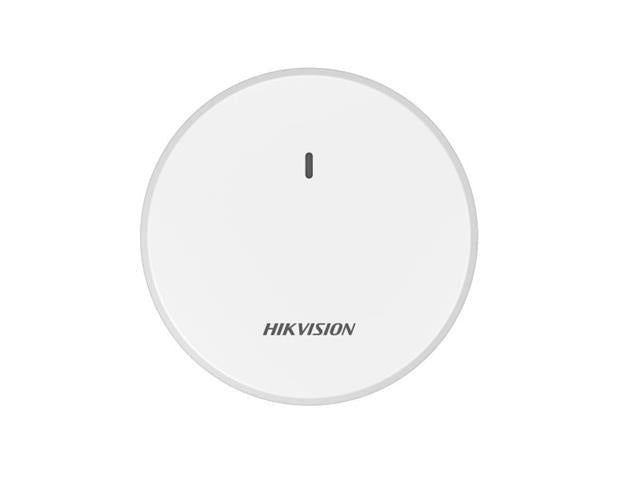

Hikvision WiFi 6 Wireless Access Point 3000Mbps, 1×2.5 Gigabit Port with PoE Input, Built-in Omnidirectional Antennas, Wi-Fi Speed:2.4 GHz:575 Mbps, 5GHz:2400Mbps, IEEE 802.3af/at PoE 12VDC 1.5A, Maximum Number of Clients:256, 220×220×39mm
WiFi 6 Wireless Access Point
Overview
DS-3WAP622E-SI is an indoor 802.11ax AP product with dual-frequency four-flow design, which meets the wireless coverage
requirements of small, medium and micro enterprises.
Features
- 1 x 2.5 Gigabit Port with PoE Input
- 802.11ax Wi-Fi 6 2975 Mbps
- 100+ Concurrent User Connections
- Auto RF Optimization
- Support Intelligent Fast Roaming
Specifications
General
-
Weight : 0.38 kg (0.83 lb)
-
Installation Mode : Desk-Mounted,Wall-Mounted,Ceiling Mounting
-
Working Temperature : 0 °C to 45 °C (32 °F to 113 °F)
-
Working Humidity : 5% to 95% (no condensation)
-
Storage Temperature : -40 °C to 70 °C (-40 °F to 158 °F)
-
Storage Humidity : 5% to 95% (no condensation)
-
Product Dimensions (W × H × D) : 220 mm × 220 mm × 39 mm (8.66'' × 8.66'' × 1.53'')
-
Packing List : 3000 M Access Point ×1,Screw Pack × 1,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1
-
Power Consumption : Max. 13.5 W
WLAN Parameters
-
Maximum Number of Clients : 256
-
Recommended Number of Clients : 100
-
Maximum Number of SSIDs : 8
-
Working Frequency Band : radio 1: 5G(11a/n/ac/ax), radio 2: 2.4G(11b/g/n/ax)
-
Wi-Fi Standards : Wi-Fi 6
-
Wi-Fi Speed : 2.4 G: 575 Mbps,5 G: 2400 Mbps
-
Spatial Streams : 2.4 GHz, 2 × 2 , MU-MIMO, 5 GHz, 2 ×2 , MU-MIMO
-
Channel Width : 2.4 GHz: Auto/20 /40 MHz,5 GHz: Auto/20 /40 /80/ 160MHz
-
Number of Antennas : 2.4GHz：2；5GHz：2
-
Antenna Type : Built-in omnidirectional antennas
-
Antenna Gain : 2.4 GHz: 3 dBi,5 GHz: 4 dBi
-
Transmit Power : 20 dBm
-
Modulation Technology : OFDM: BPSK@6/9Mbp, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps; DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps; MIMO-OFDM (11n): MCS 0-15; MIMO-OFDM (11ac): MCS 0-9
Software Specifications
-
WLAN Security : WAP-PSK,WAP2-PSK,WPA-WAP2-PSK,Blocklist & Allowlist,Support Multiple encryption key triggered dynamic unicast/multicast key update,Support Open system/shared key authentication,Support wireless endpoint access,Support 802.11i,Support SSID and VLAN binding
-
Management & Maintenance : Centralized AC management
-
Version Upgrade : upgrade on Web
Hardware Specifications
-
Interface : 1 × 2.5 Gigabit RJ45 uplink port
-
Power Supply : IEEE 802.3af/at POE,12 VDC 1.5 A
-
LED Indicator : Yellow/green/blue for different working states, flashing mode
-
Reset Button : Hardware Resetting Button
