Hikvision Outdoor Wireless Bridge Kit, 5Ghz 867Mbps 5km, Antenna Gain:12dBi, WPA2-PSK, 2x10/100 Mbps RJ45 Ports, PoE Distance:100m, Auto/Manual Selection, Channel Width:20/40/80MHz, 48V PoE/12~24VDC

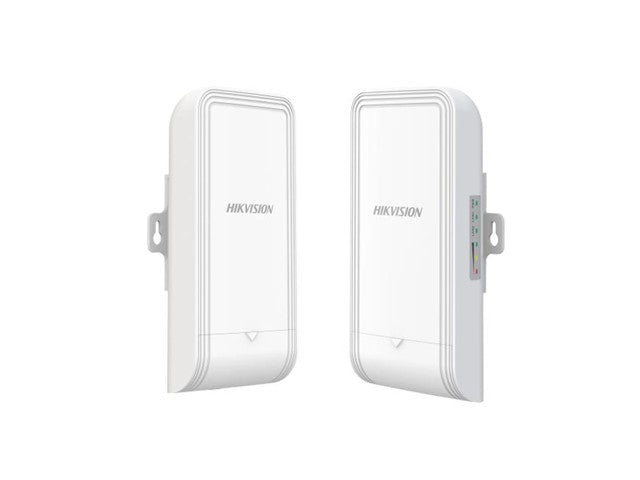

Outdoor Wireless Bridge Kit
Overview

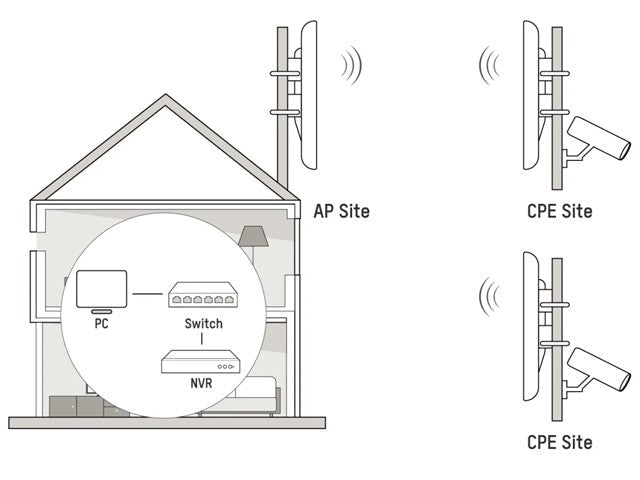

The wireless bridge can be applied in industries, such as wireless video security, railway, transportation, power and other industries, wireless video/data transmission, wireless coverage, carrier wireless backbone network construction, Wi-Fi wireless coverage, rural information construction, and wireless network coverage. The long-distance transmission of the device can guarantee multi-channel HD video transmission.
Features
- Up to 5 km wireless transmission distance
- 867 Mbps 802.11ac wireless bridge
- Built-in 12 dBi 2 x 2 MIMO antenna
- Visualized topology management
- Standard PoE Input & Output
- Plug and Play
Specifications
General
- Product Dimensions (W × H × D) : 90.8 mm × 187.87 mm × 57.87 mm (3.58'' × 7.4'' × 2.28'')
- Package Dimensions (W × H × D) : 256 mm × 231 mm × 86 mm (10.07" × 9.09" × 3.38")
- Net Weight : 0.26 kg (0.57 lb) per device
- Gross Weight : 1.1 kg (2.43 lb)
- Packing List : Wireless Bridge × 2,PoE Power Supply × 2,AC Cord × 2,Quick Start Guide ×1,Regulatory Compliance and Safety Information × 1,Binding Tape × 4
- Packing Method : Packing in pairs
- Working Temperature : -30 °C to 65 °C (-22 °F to 149 °F)
- Working Humidity : 5% to 95% (no condensation)
- Storage Temperature : -40 °C to 80 °C (-40 °F to 176 °F)
- Storage Humidity : 5% to 95% (no condensation)
- Installation Mode : Pole Mounting
- Ingress Protection : IP55
- Power Consumption2.43 W for typical (1-ch 2MP IPC), Max. 3.6 W
Wireless Parameters
-
Transmission Rate (Air Interface):≤ 867 Mbps
-
Wireless Standard:IEEE 802.11 a/n/ac
-
Working Frequency Band:
- 5150 MHz ~ 5250 MHz
- 5250 MHz ~ 5350 MHz
- 5470 MHz ~ 5725 MHz
- 5725 MHz ~ 5825 MHz
-
Antenna Gain:12 dBi
-
Antenna Angle:(H) 35° [3 dB], (V) 35° [3 dB]
-
Transmitting Power:22 dBm @ 11ac MCS0 (may vary by local regulations)
-
Receiving Sensitivity:-84 ±2 dBm @ AC80-MCS0
-
Throughput Rate:
-
PTP:90 Mbps/0.5 km (AC80), 90 Mbps/1 km (AC80), 40 Mbps/5 km (AC80)
-
PTMP (1 to 4):80 Mbps/1 km (AC80)
PoE Power Supply
-
PoE Port:
- AP: LAN1 802.3af/at PoE IN
- CPE: LAN1 Passive PoE IN, LAN2 802.3af PoE OUT
-
PoE Power Budget:10 W
-
PoE Distance:100 m
Hardware Parameters
-
Network Interface:2 × 10/100 Mbps RJ45 ports
-
LED Indicator:Power, LAN, Signal Intensity
-
Reset:Hardware reset button
-
Power Supply:48V PoE / 12~24V DC
Software Functions
-
Application Functions:IFM, IPM, DFS, TPC
-
Channel Width:20 / 40 / 80 MHz
-
Channel Selection:Auto / Manual
-
Security Mode:WPA2-PSK
-
Security Mechanism:Hidden SSID
-
Network Protocols:NTP, SADP, HTTPS/HTTP, SSH
-
Management Methods:HCP, Web, iVMS-4200, HPP
-
System Log:Syslog, Control center information
-
Upgrade Methods:Web, iVMS-4200, HCP, HPP
HPP (Hik-Partner Pro) Functions
- One-click activation
- Remote management
- Reboot device
- Restore device
- Display topology information
- Display AP–CPE connection status (signal intensity, background noise, send/receive rate)
- Configure wireless settings (mode, SSID, password, channel, bandwidth, transmit power)
- Bridge alignment
- Spectrum scanning
- PoE output management
