Hikvision Wireless Router 300Mbps, WiFi4, 2x5dBi External Antennas, IEEE 802.11b/g/n @2.4GHz, EIRP Power(Max) 18.5dBm, 4×RJ45 10/100 Mbps Auto-Negotiation, WPA-PSK/WPA2-PSK , WPA/WPA2, 174.82×96.45×181.06mm, PSU:9VDC 0.6A, 134g
300Mbps Wireless Router
Overview

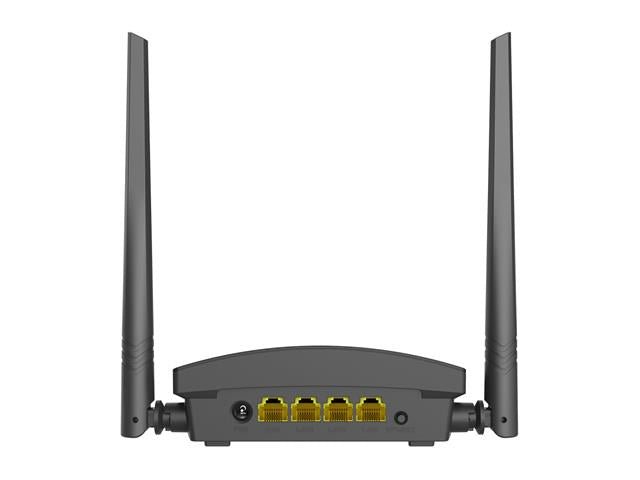

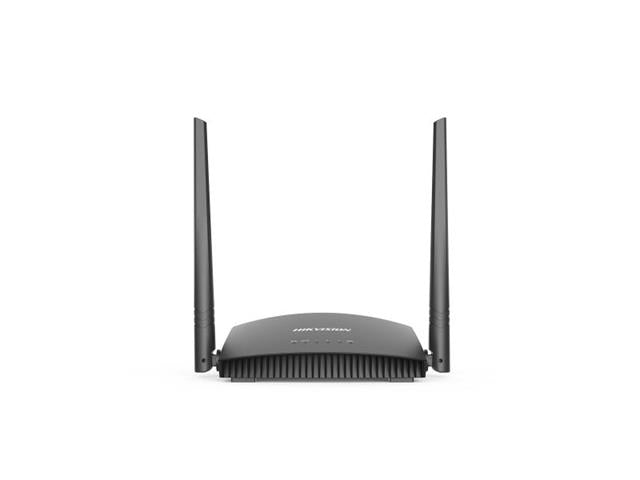

DS-3WR3N is a wireless router designed by Hikvision.
With IEEE802.11n wireless standard and the wireless
speed up to 300 Mbps, it is perfect for such activities as
email, chat, streaming videos and online gaming. DS-
3WR3N can also be used as a client router to connect ISP
network wirelessly or uplink AP to share the internet to
every corner. Equipped with amplified antennas for extra
coverage to eliminate dead zones.
Features
- 5-dBi external antennas
- Dual antennas for maximum coverage
- Supports IPTV
Specifications
General
- Product Dimension (W × H × D) : 174.82 mm × 96.45 mm × 181.06 mm (6.88"× 3.80"× 7.13")
- Package Dimension (W × H × D) : 231 mm × 203 mm × 51 mm (9.09"× 7.99"× 2.01")
- Net Weight : 0.134 kg (0.295 lb)
- Packing List : Wireless Router x 1, Ethernet cable × 1, Quick installation guide × 1
- Packing Method : Single pack
- Working Temperature : 0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
- Working Humidity : 10% to 90% RH non-condensing
- Storage Temperature : -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
- Storage Humidity : 5% to 90% RH non-condensing
- Installation Mode : Desktop installation
- Max. Power Consumption : ≤ 5.4 W
- Gross Weight : 0.634 kg (1.398 lb)
Wireless Parameter
- Data Rate : 2.4 GHz: 300 Mbps
- Wireless Standard : IEEE 802.11b/g/n @2.4 GHz
- Transmitting Power : 18 dBm
- Wireless Performance : Beamforming supported
- Receiving Sensitivity
- 58 ± 2 dB@AC80 -MCS9
- 84 ± 2 dB@AC80 -MCS0
- Antenna : 2 high gain antennas
Hardware Parameter
- Network Interface : 4 × RJ45, 10/100 Mbps auto-negotiation
- LED Indicator : LED indicator
- Reset : Reset button
- Power Supply Method : 9 VDC, 1 A power adapter power supply
- Power Specifications : 9 VDC, 1 A
Software Function
- Application function
- Wireless Router Mode, Wireless Repeater Mode, Client + AP, WISP, and AP Mode supported
- DHCP Server supported
- Guest Network Configuration supported
- Signal Adjustment supported
- WiFi Schedule supported
- Security Mode : WPA-PSK/WPA2-PSK, WPA/WPA2
- Security Mechanism : Hide SSID
- Management Method : Web
- Upgrade : Web Update and Upgrade
- System Log : System log
Downloads
Additional Information
| Device |
Router |
| Type |
300Mbps | Wireless |
