• Equipped with the 32-bit high-speed processor
• RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
• Build-in Mifare card reading module (Frequency: 13.56 MHz)
• Supports tampering alarm
• Built-in buzzer for identifying the reading status
• Online upgrade function
• Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader

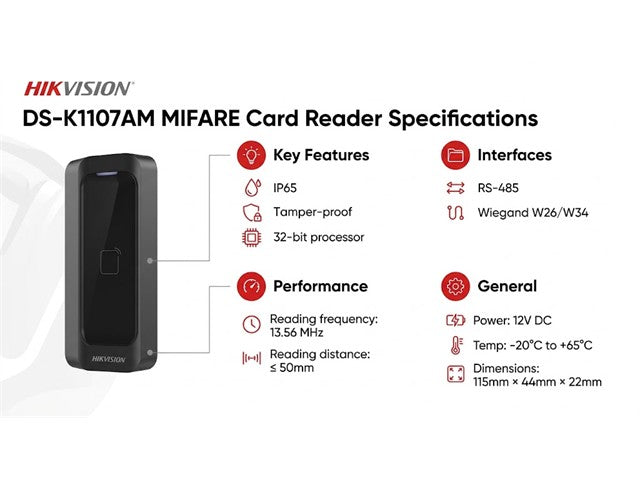

• System
  • Processor : 32-bit
• Interface
  • TAMPER : Support
  • RS-485 : Support
• Wiegand : Support (set via DIP switch)
• Authentication
  • Card reading frequency13.56 MHz
  • Card reading distance≤50 mm (≤1.97")

General

• Indicator : Power indicator, status indicator
• Power supply : 12 VDC
• Power consumption : ≤2 W
• Working temperature : -20 °C to 65 °C (-4 °F to 149 °F)
• Working humidity : 10% to 90% (Non Condensing)
• Protective level : IP65
• Dimensions : 115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'' )
• Installation : Wall Mounting with Screws; Do Not Support Gang Box
• Buzzer : Support
