Hikvision Fingerprint Enrollment Reader USB2.0, CPU:32bit MCU, Resolution:508 dpi, Fingerprint Template Size:256×288, Windows XP, Windows7/10, 5VDC 200mA, 100×48×35mm
Fingerprint Enrollment Reader
Overview

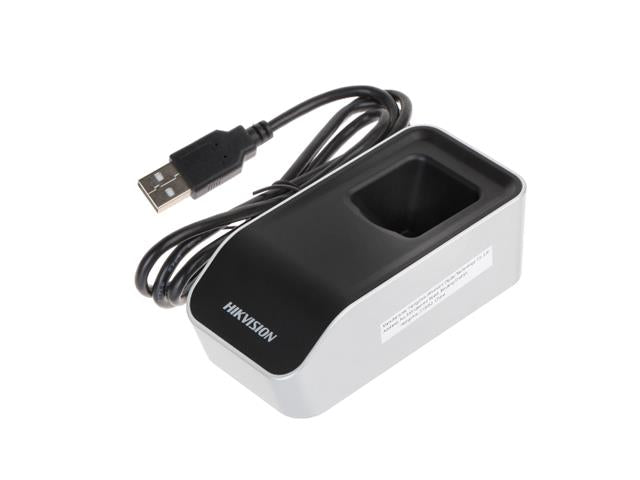

DS-K1F820-F Fingerprint Recorder supports living fingerprint
registration, and identification. It can connect to the computer directly
via USB interface, and upload/download fingerprint characteristic data
and image to the controller/ module. It supports the function of
checking the completeness of registered fingerprint templates.
Features
- 508 dpi high-definition
- Supports the function of PnP (plug and play)
- Optical fingerprint sensor designed with scratch-resistant material
- Applies to Windows XP, Windows7, and Windows 10 operation system
- Supports configuration and operation via client software
- USB 2.0 communication standard for data transmission
- Power over USB
- Composite fingerprint images from triple collection
Specifications
- Model : DS-K1F820-F
- CPU : 32bit MCU
- Fingerprint Reader : Optical, Red Backlight
- Resolution : 508 dpi
- Fingerprint Template Size : 256 × 288 (pixel)
- Communication Interface : USB 2.0
- Operating Voltage : 5 VDC, 200mA
- Working Temperature : -30°C to +70°C (-22°F to 158°F)
- Working Humidity : 20% to 80%
- Operation System : Windows XP, Windows7, and Windows 10
- Dimension (L*W*H) : 100mm × 48mm × 35mm (3.9” × 1.9” × 1.4”)
Downloads
Additional Information
| Device |
Reader |
| Type |
Fingerprint Enrollment |
