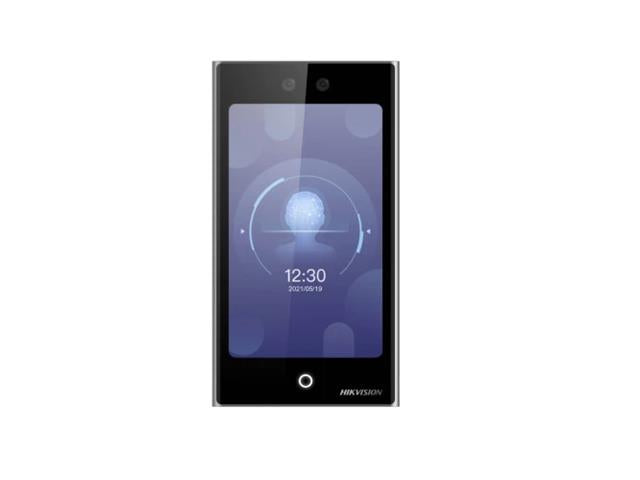

Hikvision Face Recognition Terminal 7inch Touch Screen 2MP, 10/100/1000 Mbps Self-Adaptive, 2.4 G, 802.11b/g/n, Card Capacity:50000, Face Capacity:10000, Wiegand, Alarm I/P:2, Alarm O/P:1, M1 Card, DESfire Card, Felica Card, IP65
Face Recognition Terminal 7inch Touch Screen
Feature(s)
- 7-inch LCD touch screen,2 Mega pixel wide-angle lens
- Recognition distance: 0.3 to 3 m
- Face recognition duration < 0.2 s/User
- Built-in M1 card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
- Face recognition accuracy rate ≥ 99%
- Face mask detection
- 10,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 50,000 card capacity, and 150,000 event
capacity
- Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
- Supports single person and multiple people (Up to 5 people) recognition
Specifications
System
Display
- Size : 7-inch
- Type : Touch screen
Video
- FOV : HFOV= 75.5°; VFOV= 41.5°; DFOV= 87°
- Pixel : 2 MP
- Lens : Dual-lens
- Video standard : PAL (Default)/NTSC
Network
- Wired network : Support 10/100/1000 Mbps self-adaptive
- Wi-Fi : Support, 2.4 G, 802.11b/g/n
Interface
- Alarm input : 2
- Alarm output : 1
- USB : 1 (For Module)
- Audio Output Interface : 1 (3.5 mm)
- Network interface : 1
- RS-485 : 1
- Wiegand : 1
- Lock output : 1
- Exit button : 1
- Door contact input 1
- TAMPER : 1
Capacity
- Card capacity 50,000
- Face capacity 10,000
- Event capacity 150,000
- Authentication
- Face recognition accuracy rate ≥ 99%
- Card type M1 card, DESfire card, Felica card
- Card reading distance 0 to 3 cm
- Card reading duration < 1 s
- Face recognition duration < 0.2 s per person
- Face recognition distance 0.3 to 3 m
General
- Power supply : 12 VDC to 24 VDC/2 A
- Working temperature : -30 °C to 60 °C (-22 °F to 140 °F)
- Working humidity : 0 to 90% (no condensing)
- Protective level : IP65
- Dimensions : 110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94")
Weight
- Gross Weight : 1.06 kg (2.34 lb)
- Net Weight : 0.57 kg (1.26 lb)
- Language : English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese,
Portuguese (Brazil), Japanese, Korean
Function
- Two-way audio Support
- Time synchronization Support
- Face anti-spoofing Support
- Live view Support
- Audio prompt Support
