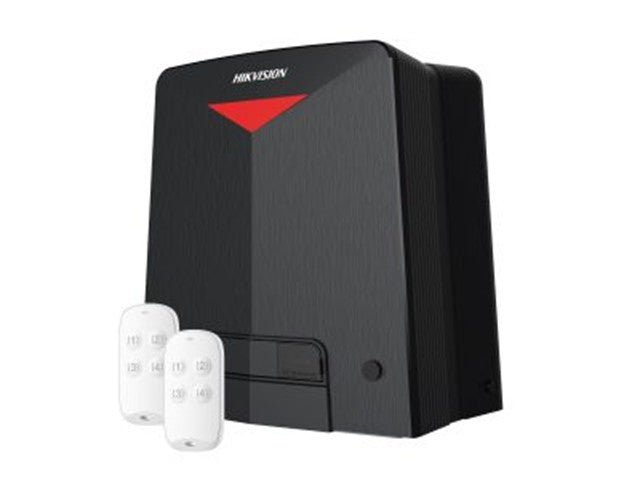

Hikvision H6 Sliding Gate Motor 600Kg, Built-in Wi-Fi & LAN Connectivity, Up to 0.6 m/sec @17 Kgf, Brush Motor - Includes:2x4 Button Wireless Keyfob 868Mhz (Excl:2x12V7A Batt - Ant i-Theft Bracket:DS-KSB01-GL - Base Plate:DS-KSM03/GL606 & Steel Racks)
H6 Sliding Gate Motor
Features
- Support built-in WIFI and LAN interfaces, easy for remote management system.
- Battery-driven, max open speed at 0.6 m/second, @17 Kgf (2 x 12V 7AH batteries are essential for normal operation, max dimension (W × H × D): 151mm x 94mm x 65mm).
- Support Mobile web configuration with AP mode by a simple touch on NFC tags.
- Support component status self- diagnostics
- Support built-in access system, could achieve the functions of opening doors via PIN code, card, and QR code with external AC card reader.
- The system supports linkage function, enabling integrated applications with intercom, alarm, and access control systems.
- The product supports low-power mode, which allows for excellent power consumption management after a power outage, achieving longer standby times and more door opening and closing cycles.

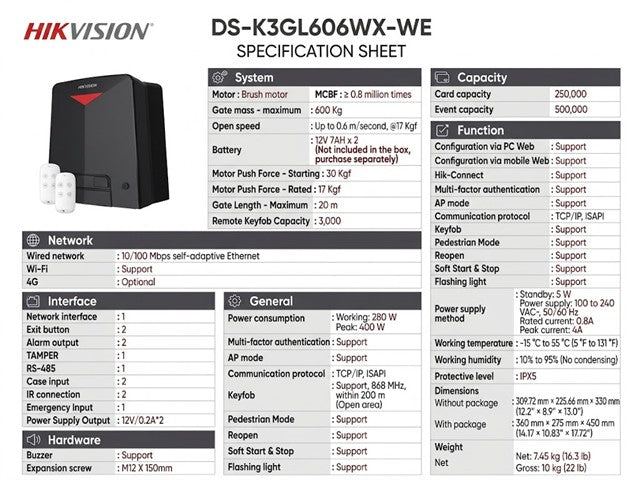

Specifications
System
-
Motor : Brush motor
-
MCBF : ≥ 0.8 million times
-
Gate mass - maximum : 600 Kg
-
Open speed : Up to 0.6 m/second, @17 Kgf
-
Battery : 12V 7AH x 2 (Not included in the box, purchase separately)
-
Motor Push Force - Starting : 30 Kgf
-
Motor Push Force - Rated : 17 Kgf
-
Gate Length - Maximum : 20 m
-
Remote Keyfob Capacity : 3,000
Network
-
Wired network : 10/100 Mbps self-adaptive Ethernet
-
Wi-Fi : Support
-
4G : Optional
Interface
-
Network interface : 1
-
Exit button : 2
-
Alarm output : 2
-
TAMPER : 1
-
RS-485 : 1
-
Case input : 2
-
IR connection : 2
-
Emergency Input : 1
-
Power Supply Output : 12V/0.2A*2
Hardware
-
Buzzer : Support
-
Expansion screw : M12 X 150mm
Capacity
-
Card capacity250,000
-
Event capacity500,000
Function
-
Configuration via PC Web : Support
-
Configuration via mobile Web : Support
-
Hik-Connect : Support
-
Multi-factor authentication : Support
-
AP mode : Support
-
Communication protocol : TCP/IP,ISAPI
-
Keyfob : Support, 868 MHz, within 200 m (Open area)
-
Pedestrian Mode : Support
-
Reopen : Support
-
Soft Start & Stop : Support
-
Flashing light : Support
General
-
Power consumption
- Standby: 5 W
- Working: 280 W
- Peak: 400 W
-
Power supply method : Power supply: 100 to 240 VAC~, 50/60 Hz, Rated current: 0.8A, Peak current: 4A
-
Working temperature : -15 °C to 55 °C (5 °F to 131 °F)
-
Working humidity : 10% to 95% (No condensing)
-
Protective level : IPX5
-
Dimensions
- Without package: 309.72 mm × 225.66 mm × 330 mm (12.2" × 8.9\" × 13.0\")
- With package: 360 mm × 275 mm × 450 mm (14.17 × 10.83\" × 17.72\")"
- Net: 7.45 kg (16.3 lb)
- Gross: 10 kg (22 lb)
-
Approval : CE/CB/RoHS/REACH/WEEE
-
Language : English, Arabic, Indonesian, Japanese, Kazakh, Portuguese (Brazil), Spanish (Latin America), Spanish (Europe), Thai, Russian, Ukrainian, Uzbek, Vietnamese, Korean
