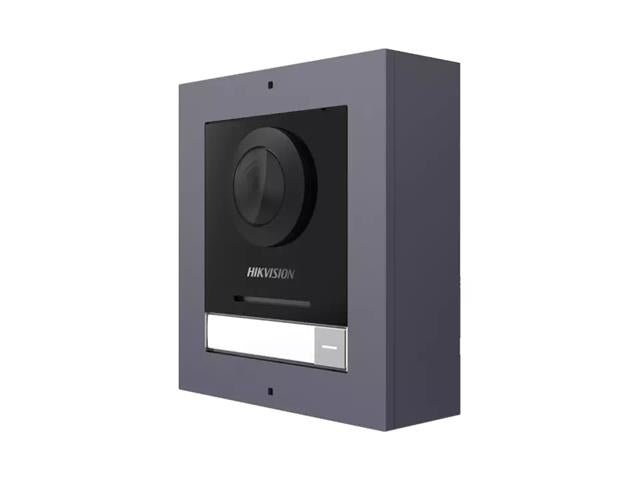

HKV DS-KD8003-IME1(B) SURFACE

SKU: HKV DS-KD8003-IME1(B) SURFACE

BRAND: Hikvision


Hikvision Modular Door Station Pro Main Unit, 2MP HD Camera, Built-in Microphone & Speaker, 1xRJ45 10/100, PSU12 VDC 500mA, IEEE 802.3af, PoE, TCP/IP, RTSP, LINUX, ROM:32MB - RAM:256MB, 2000 Users, Card Capacity:6000, 98x100x42mm, IP65

Modular Door Station Pro Main Unit

Features

  • Surface mounting main unit of modular door station
  • 2 MP fisheye Camera with IR Supplement
  • One call Physical Button For easier calls
  • Two-lock control
  • Standard PoE power supply
  • IP65 protection level
  • Convenient configuration via Web remotely
  • Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply

Specifications

System parameters

  • Operation system : Linux
  • ROM : 32 MB
  • RAM : 256 MB
  • Processor : Embeded high performance processor

Video parameters

  • Lens : 2 MP HD camera
  • Resolution : 2 MP
  • FOV : Horizontal: 146°, Vertical: 82°
  • Wide dynamic range (WDR) : Support
  • Supplement light : Low illumination, IR supplement lights
  • Video compression standard : H.264

Audio parameters

  • Audio input : 1 built-in omnidirectional microphone
  • Audio compression standard : G.711 U/G.711 A
  • Audio output : 1 built-in loudspeaker
  • Audio compression bitrate : 64 Kbps
  • Audio quality : Noise suppression and echo cancellation
  • Volume adjustment : Adjustable

Capacity

  • User capacity : 2000
  • Linked indoor station capacity : 500
  • Sub door station capacity : 16

Network parameters

  • Network protocol : TCP/IP, RTSP


Device interfaces

  • Alarm input : 4 (2 exit butttons and 2 door contacts by default)
  • Network interface : 1 RJ-45, 10/100 Mbps self-adaptive
  • TAMPER : 1
  • Exit button : 2 (2 for lock control)
  • RS-485 : 1 (1 for Hikvision's sub module communication)
  • Lock control 2 relays, Max. 30 VDC, 2 A
  • Door contact input : 2

General

  • Button : 1 physical button
  • Installation : Surface mounting
  • Weight
    • Net weight: 600 g
    • Gross weight: 865 g
  • Protective level : IP65
  • Working temperature : -40 °C to 60 °C (-40 °F to 140 °F)
  • Working humidity : 10% to 95% (no-condensing)

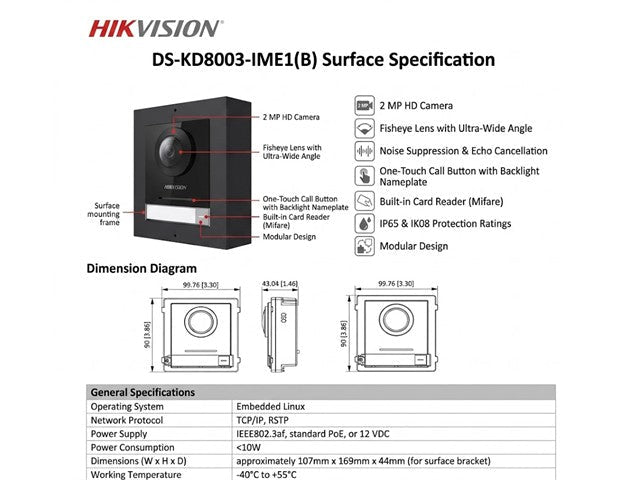

  • Dimension (W × H × D)
    • Device: 98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65")
    • Cover:117 × 107 × 4 mm (4.61" × 4.21" ×0.16")
    • Installation Frame:117 × 107 × 32.7mm (4.61" × 4.21" ×1.29")
  • Power supply : 12 VDC, 500 mA, IEEE 802.3af, PoE
  • Application environment : Outdoor
  • Power consumption : ≤ 5 W
  • Language : English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish, Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croa
    tian,Serbian,Greek,Slovak

Downloads

Additional Information

Device Door Station
Type Modular | Pro Main Unit
