HKV DS-PDCM15PF-IR

Name: HKV DS-PDCM15PF-IR - Communica [Part No: HKV DS-PDCM15PF-IR]
Brand: Hikvision
SKU: HKV DS-PDCM15PF-IR
Price: 1150 ZAR
Availability: InStock

SKU: HKV DS-PDCM15PF-IR

BRAND: Hikvision

In Stock
R 1,322.50_{(inc VAT)}
R 1,150.00_{(ex VAT)}

Collections: Security, Access Control & Surveillance

Type: CCTV Products & Accessories

Category: PIR Camera

Hikvision RF Camera Module 2mm Lens, 15m IR, 1/2.7" CMOS, 3D Digital Noise Reduction, PSU: 3VDC 1200ma, IP66, (Used with DS-PDTT15AM-LM-WE)

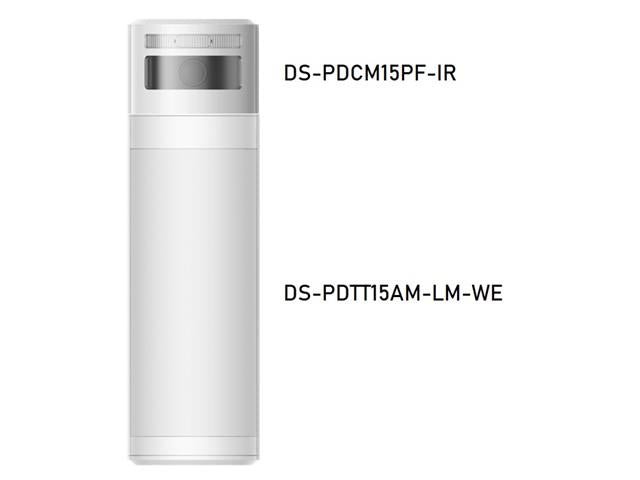

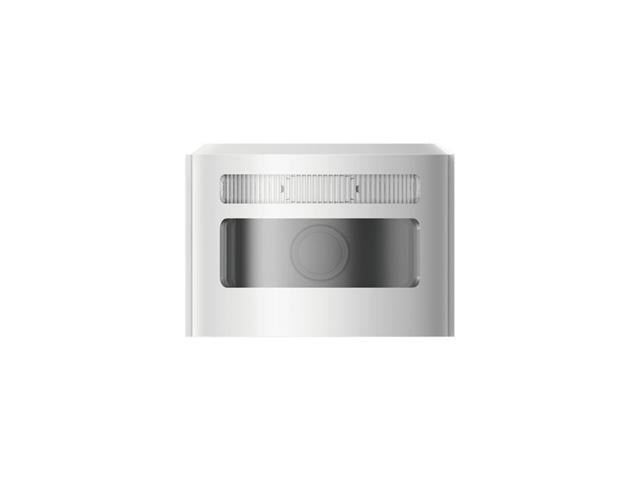

RF Camera Module

Overview

Camera module that works with our newly released wireless outdoor Tri-tech detector, built-in CMOS high quality color camera that provide you an ideal solution for video verification, both users and CMS can verify alarms day and night by viewing real-time images captured by this camera

Feature(s)

RF Camera Module

1/2.7" Progressive Scan CMOS
2.0 mm fixed lens
3D Digital Noise Reduction
Easy Installation
The direction of the Angle can be adjusted to fit the TT Detector's Angle
Protection Level IP66

Specifications

Detection Performance

Detection Method : Video Verification

Feature

Digital Noise Reduction : 3D
Focal length : 2.0mm@F2.25

Video

Field Angle : 137.2°(H), 80.1°(V)
Image Type : JPEG
Resolusion : 640*480;320*240;160*120
Fill Light : Infrared Light
Fill Range : 15m
Day/Night Switch : Auto

Interface

Communication Interface : 1 12-Bit Data Interface

Electrical Characteristics

Power Supply : 3 VDC
Power Consumption : 1200mA

General

Operation Temperature : -25 °C to 60 °C (-13 °F to 140 °F)
Storage Temperature : -25 °C to 60 °C (-13 °F to 140 °F)
Operation Humidity : 10% to 90%
IP Rate : IP66
Dimension(WxHxD) : 74.1mm x 72.35mm x 53mm
Weight : 155g

Downloads

Datasheet - HKV DS-PDCM15PF-IR

Additional Information

Device	Module
Type	RF \| Camera
