Hikvision Wireless Multi IO Transmitter 868MHZ, Alarm I/P:16, Alarm O/P:2, Two-way Communication, 2GFSK, RF Distance:1100m, Compatible with 12V7Ah, 100-240 VAC 30W, 261×199×86.4mm, Power(Green), Fault(Amber), Signal Strength(Green/Red)
Wireless Control Panel 868MHz
Overview
DS-PM1-I16O2-WE wireless multi IO transmitter offers a
connection of third party wired detectors like outdoor PIR, to
AX PRO alarm system, the alarm types and zone parameters
can be set through APP by installers easily. Under the
situation when your want to update your security system to
AXPRO with more innovated features, multi IO transmitter
gives you a chance to rebuild your alarm system without
changing existing wired detectors.
Features
- 868 MHz two-way wireless communication
- LED display, show the real status of device
- With 16 onboard inputs and 2 outputs, can be applied to connect wired detectors
- With two 12 V power outputs, can be used to power up external wired detectors
- Large space for back up storage battery

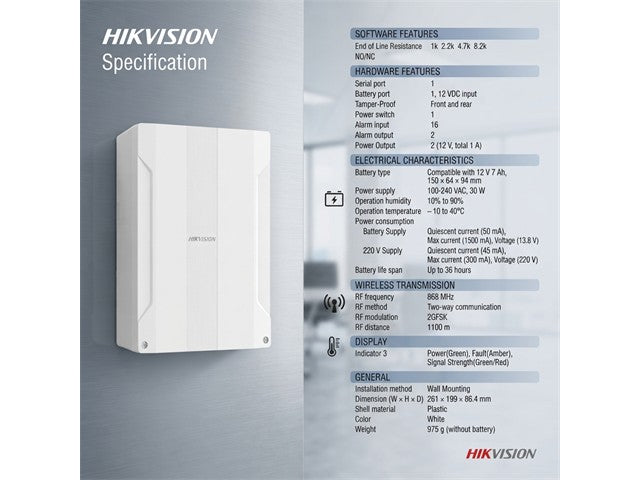

Specifications
Software features
Hardware features
- Serial port : 1
- Battery port : 1, 12 VDC input
- Tamper-Proof : Front and rear
- Power switch : 1
- Alarm input : 16
- Alarm output : 2
- Power Output : 2 (12 V, total1 A)
Electrical characteristics
- Battery type : Compatible with 12 V 7 Ah, 150 × 64 × 94 mm
- Power supply : 100-240 VAC,30 W
- Operation humidity : 10% to 90%
- Operation temperature : –10 to 40°C
- Power consumption
- Battery Supply: Quiescent current (50 mA), Max current (1500 mA), Voltage (13.8 V)
- 220 V Supply: Quiescent current (45 mA), Max current (300 mA), Voltage (220 V)
- Battery life span : Up to 36 hours
Wireless transmission
- RF frequency : 868 MHz
- RF method : Two-way communication
- RF modulation : 2GFSK
- RF distance : 1100 m
Display
- Indicator 3: Power(Green), Fault(Amber), Signal Strength(Green/Red)
General
- Installation method : Wall Mounting
- Dimension(W × H × D) : 261 × 199 × 86.4 mm
- Shell material : Plastic
- Color : White
- Weight : 975 g (without battery)
Downloads
Additional Information
| Device |
Control Panel |
| Type |
Wireless | 868MHz |
Upgrade your security with the HKV DS-PM1-I16O2-WE Wireless Multi IO Transmitter. Featuring 16 inputs and 2 outputs, this 868MHz device seamlessly connects wired detectors to your AX PRO alarm system, ensuring robust two-way communication and a wireless range of up to 1100m. Enhance safety without replacing existing setups and enjoy easy app-based configuration for ultimate convenience.
