HKV IDS-7108HQHI-M1/S

SKU: HKV IDS-7108HQHI-M1/S

BRAND: Hikvision


Hikvision 8CH Turbo Acusense DVR Mini 1u , Support H.265 Pro+/H.265 Pro/H.265, IP/HDTVI/AHD/CVI/CVBS/-1080P, 8xBNC, x1 HDMI, x1 RJ45, x1 SATA, x2 USB, Audio In/Out RCA, VGA, Up to 10TB Capacity per disk , 32Kbps ~6Mbps , 12VDC@1.3A 12W, 1kg

8CH Mini Turbo Acusense DVR

Feature(s)

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • Deep learning-based perimeter protection
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video inputs
  • Audio via coaxial cable
  • Up to 12-ch IP camera inputs (up to 6 MP)
  • Up to 1080p@15 fps encoding capability

Specifications

Motion Detection 2.0

  • Human/Vehicle Analysis
    • Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
    • Quick search by object or event type is supported;

Perimeter Protection

  • Human/Vehicle Analysis : Up to 4-ch

Facial Detection

  • Facial Detection and Capture : Face picture detection, face picture search

Recording

  • Video Compression : H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Encoding Resolution
    • When 1080p Lite mode is not enabled:
      • 3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;
    • When 1080p Lite mode is enabled:
      • 3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF
  • Frame Rate
    • Main stream:
      • When 1080p Lite mode not enabled:
        • For 3K stream access: 3K lite@12fps;4 MP
        • lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
      • For 5 MP stream access: 5 MP lite@12fps;4 MP
        • lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@20fps
      • For 4 MP stream access: 4 MP
        • lite/1080p@15fps;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
      • For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
      • For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
      • When 1080p Lite mode enabled:
        • 3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p
        • lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
    • Sub-stream:
      • WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
  • Video Bitrate : 32 Kbps to 6 Mbps
  • Dual-stream : Support
  • Stream Type : Video, Video & Audio
  • Audio Compression : G.711u
  • Audio Bitrate : 64 Kbps

Video and Audio

  • IP Video Input
  • 2-ch (up to 10-ch)
  • Enhanced IP mode on:
  • 4-ch (up to 12-ch), each up to 4 Mbps
  • Up to 6 MP resolution
  • Support H.265+/H.265/H.264+/H.264 IP cameras
  • Analog Video Input
    • 8-ch
    • BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • HDTVI Input : 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
  • AHD Input : 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • HDCVI Input : 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
  • CVBS Input : Support
  • HDMI Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • VGA Output : 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
  • Video Output Mode : HDMI/VGA simultaneous output
  • Audio Input
    • 1-ch, RCA (2.0 Vp-p, 1 KΩ)
    • 8-ch via coaxial cable
  • Audio Output : 1-ch, RCA (Linear, 1 KΩ)
  • Two-Way Audio : 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Synchronous Playback : 8-ch

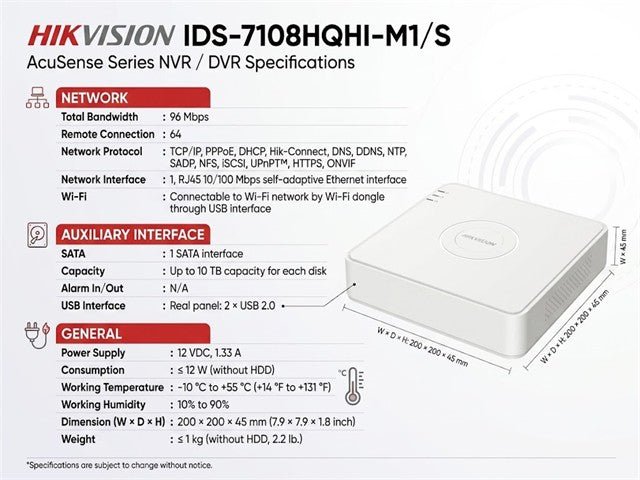

Network

  • Total Bandwidth : 96 Mbps
  • Remote Connection : 64
  • Network Protocol : TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnPTM, HTTPS, ONVIF
  • Network Interface : 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
  • Wi-Fi : Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

  • SATA : 1 SATA interface
  • Capacity : Up to 10 TB capacity for each disk
  • Alarm In/Out : N/A
  • USB Interface : Real panel: 2 × USB 2.0

General

  • Power Supply : 12 VDC, 1.33 A
  • Consumption : ≤ 12 W (without HDD)
  • Working Temperature : -10 °C to +55 °C (+14 °F to +131 °F)
  • Working Humidity : 10% to 90%
  • Dimension (W × D × H) : 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
  • Weight : ≤ 1 kg (without HDD, 2.2 lb.)

Downloads

Additional Information

Device DVR
Type 8CH | Mini | Turbo | Acusense
