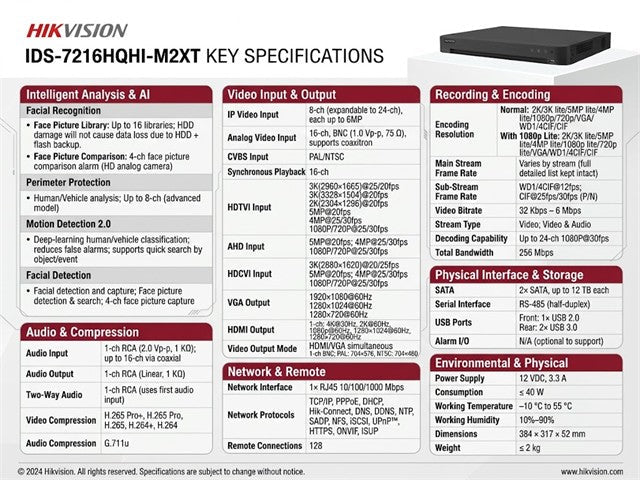

| Facial Recognition |
Face Picture Library: Up to 16 libraries; HDD damage will not cause data loss due to HDD + flash backup. |
| Face Picture Comparison |
4-ch face picture comparison alarm (HD analog camera) |
| Motion Detection 2.0 |
Deep-learning human/vehicle classification; reduces false alarms; supports quick search by object/event |
| Perimeter Protection |
Human/Vehicle analysis; Up to 8-ch (advanced model) |
| Facial Detection |
Facial detection and capture; Face picture detection & search; 4-ch face picture capture |
| IP Video Input |
8-ch (expandable to 24-ch), each up to 6MP |
| Analog Video Input |
16-ch, BNC (1.0 Vp-p, 75 Ω), supports coaxitron |
| HDMI Output |
1-ch: 4K@30Hz, 2K@60Hz, 1080p@60Hz, 1280×1024@60Hz, 1280×720@60Hz |
| CVBS Input |
PAL/NTSC |
| CVBS Output |
1-ch BNC; PAL: 704×576, NTSC: 704×480 |
| Synchronous Playback |
16-ch |
| HDTVI Input |
3K(2960×1665)@25/20fps; 3K(3328×1504)@20fps; 2K(2304×1296)@20fps; 5MP@20fps; 4MP@25/30fps; 1080P/720P@25/30fps |
| AHD Input |
5MP@20fps; 4MP@25/30fps; 1080P/720P@25/30fps |
| HDCVI Input |
3K(2880×1620)@20/25fps; 5MP@20fps; 4MP@25/30fps; 1080P/720P@25/30fps |
| VGA Output |
1920×1080@60Hz; 1280×1024@60Hz; 1280×720@60Hz |
| Video Output Mode |
HDMI/VGA simultaneous |
| Audio Output |
1-ch RCA (Linear, 1 KΩ) |
| Audio Input |
1-ch RCA (2.0 Vp-p, 1 KΩ); up to 16-ch via coaxial |
| Two-Way Audio |
1-ch RCA (uses first audio input) |
| Video Compression |
H.265 Pro+, H.265 Pro, H.265, H.264+, H.264 |
| Encoding Resolution |
Normal: 2K/3K lite/5MP lite/4MP lite/1080p/720p/VGA/WD1/4CIF/CIF; With 1080p Lite: 2K/3K lite/5MP lite/4MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF |
| Main Stream Frame Rate |
Varies by stream (full detailed list kept intact) |
| Sub-Stream Frame Rate |
WD1/4CIF@12fps; CIF@25fps/30fps (P/N) |
| Video Bitrate |
32 Kbps – 6 Mbps |
| Dual-Stream |
Supported (main or sub) |
| Stream Type |
Video; Video & Audio |
| Audio Compression |
G.711u |
| Audio Bitrate |
64 Kbps |
| Decoding Capability |
Up to 24-ch 1080P@30fps |
| Total Bandwidth |
256 Mbps |
| Network Protocols |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP |
| Remote Connections |
128 |
| Network Interface |
1× RJ45 10/100/1000 Mbps |
| SATA |
2× SATA, up to 12 TB each |
| Serial Interface |
RS-485 (half-duplex) |
| USB Ports |
Front: 1× USB 2.0; Rear: 2× USB 3.0 |
| Alarm I/O |
N/A (optional to support) |
| Power Supply |
12 VDC, 3.3 A |
| Consumption |
≤ 40 W |
| Working Temperature |
−10 °C to 55 °C |
| Working Humidity |
10%–90% |
| Dimensions |
384 × 317 × 52 mm |
| Weight |
≤ 2 kg |
