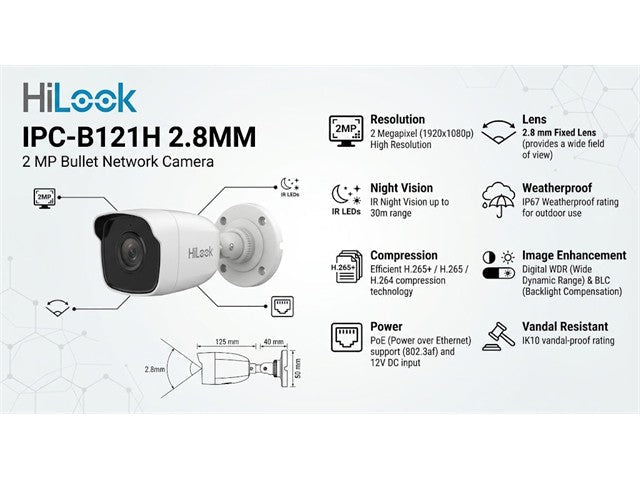

• High quality imaging with 2 MP resolution
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to DWDR technology
• Water and dust resistant (IP67)
• EXIR 2.0: advanced infrared technology with long IR range

Camera

• Image Sensor : 1/2.7" Progressive Scan CMOS
• Max. Resolution : 1920 × 1080
• Min. Illumination : Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
• Shutter Time : 1/3 s to 1/100, 000 s
• Day & Night : IR cut filter
• Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°

Lens

• Focal Length & FOV : 2.8 mm, horizontal FOV 112.1°, vertical FOV 60.0°, diagonal FOV 132.2°
• Lens Mount : M12
• Focus : Fixed
• Aperture : F2.0
• Lens Type : Fixed focal lens, 2.8 and 4 mm optional
• Iris Type : Fixed

Illuminator

• Supplement Light Type : IR
• Supplement Light Range : Up to 30 m
• IR Wavelength : 850 nm
• Smart Supplement LightY : es

Video

• Main Stream
  • 50 Hz: 25 fps (1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50 Hz: 25 fps (640 × 480, 640 × 360)
  • 60 Hz: 30 fps (640 × 480, 640 × 360)
• Video Compression
  • Main stream: H.265/H.264/H.264+/H.265+
  • Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile/Main Profile/High Profile
• H.265 Type : Main Profile
• Region of Interest (ROI) : 1 fixed region for main stream

Network

• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP™, SMTP, IGMP, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
• Simultaneous Live View : Up to 6 channels
• API : Open Network Video Interface, ISAPI
• User/Host : Up to 32 users. 3 levels: administrator, operator and user
• Client : iVMS-4200, Hik-Connect
• Web Browser
• Plug-in required live view: IE 10+
• Plug-in free live view: Chrome 57.0+, Firefox 52.0+
• Local service: Chrome 57.0+, Firefox 52.0+


• Image Settings : Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser.
• Day/Night Switch : Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR) : Digital WDR
• Image Enhancement : BLC, 3D DNR

Interface

• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

Event

• Basic Event : Motion detection, video tampering alarm, exception
• Linkage : Upload to FTP, notify surveillance center, send email

General

• Power
  • 12 VDC ± 25%, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug
  • PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.15 A, max. 6.5 W
• Dimension : 186.3 mm × 71.4 mm × 66.7 mm (7.3" × 2.8" × 2.6")
• Package Dimension : 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
• Weight : Approx. 270 g (0.6 lb.)
• With Package Weight : Approx. 490 g (1.1 lb.)
• Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
• Language : English, Ukrainian
• General Function : Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
