• H.265+/H.265/H.264+/H.264 video compression
• Up to 60 Mbps incoming bandwidth, and 60 Mbps outgoing bandwidth
• Up to 8-ch network camera inputs
• Up to 4-ch 1080p decoding capability
• HDMI and VGA simultaneous output

Video and Audio

• IP Video Input
• 8-ch
• Up to 6 MP resolution
• Incoming Bandwidth : 60 Mbps
• Outgoing Bandwidth : 60 Mbps
• HDMI Output : 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• VGA Output : 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode : HDMI/VGA simultaneous output

Decoding

• Decoding Format : H.265+/H.265/ H.264+/H.264
• Recording Resolution : 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback : 4-ch
• Decoding Capability : 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
• Stream Type : Video, Video & Audio

Network

• Remote Connection : 16
• Network Protocol : TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™
• Network Interface : 1, RJ-45 10/100Mbps self-adaptive Ethernet interface

PoE

• Interface : 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power : ≤ 75 W
• Standard : IEEE 802.3 af/at

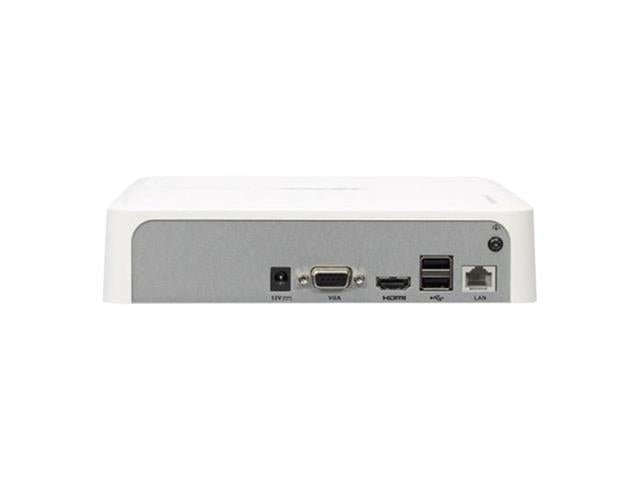

Auxiliary Interface

• SATA : 1 SATA interface
• Capacity : Up to 6 TB capacity for each disk
• Alarm In/OutN/A
• USB Interface : Rear panel: 2 × USB 2.0

General

• Power Supply : 48 VDC, 1.8 A
• Consumption : ≤ 10 W (without HDD and PoE off)
• Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity : 10% to 90%
• Dimension (W × D × H) : 285 × 210 × 48 mm(11.2" × 8.3\" × 1.9\")
• Weight : ≤ 1 kg (without HDD, 2.2 lb.)
• Certification : CEEN50130-4, EN 61000-3-2,EN 61000-3-3
