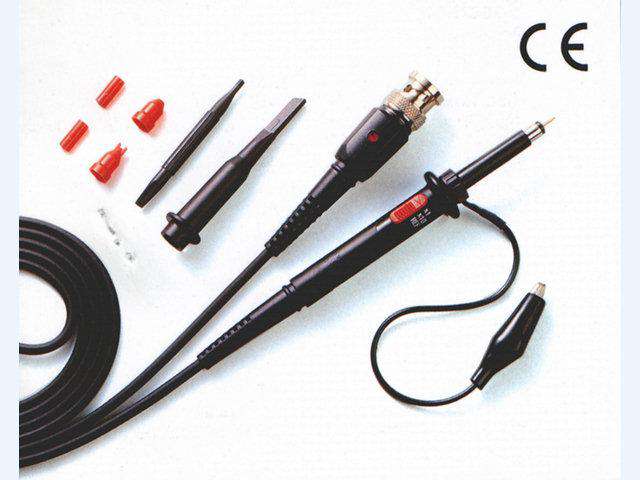

HP9060 - Test Leads & Probes -

HP9060

SKU: HP9060

BRAND: Communica


Sold Out

Collections: Test & Measurement

Type: Test Leads & Probes

Category: Test Probes

Oscilloscope Probe 60MHz • x1/ x10/ Ref Probe Switch Selectable

Overview

Features

  • Position x10 :
    • Attenuation Ratio 10:1
    • Bandwidth : DC to 60MHz
    • Rise Time : 5.8nS
    • Input Resistance : 10MΩ when used with oscilloscopes which have 1MΩ input
    • Input Capacitance : Approx. 23 pF
    • Compensation Range : 20 to 45 pF
    • Working Voltage : 600V DC incl. peak AC derating with frequency
    • Position x1 :
      • Attenuation Ratio : 1:1
      • Bandwidth : DC to 6MHz
      • Rise Time : 58nS
      • Input Resistance : 1MΩ (Oscilloscope Input Resistance)
      • Input Capacitance : 128 pF Plus oscilloscope capacitance
      • Working Voltage : 600V DC incl. peak AC derating with frequency
      • Cable Length : 1.4 Meters
      • Position Ref : Probe tip grounded via 9MΩ resistor, oscilloscope input grounded
