HP9100

SKU: HP9100

BRAND: Communica

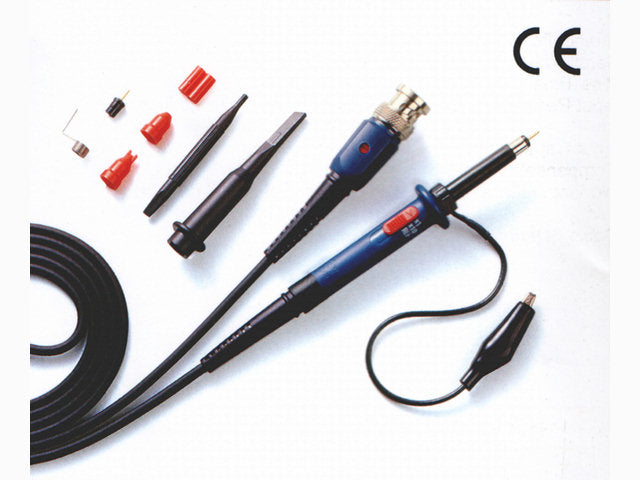

Oscilloscope Probe X1 (IV = 300VDC) X10 (IV = 600VDC) 100MHZ

Specifications

  • Position x10 :
    • Attenuation Ratio 10:1
    • Bandwidth : DC to 100MHz
    • Rise Time : 3.5nS
    • Input Resistance :10MΩ when used with oscilloscopes which have 1MΩ input
    • Input Capacitance : Approx. 18 pF
    • Compensation Range : 10 to 35 pF
    • Working Voltage : 600V DC incl. peak AC derating with frequency
  • Position x1
    • Attenuation Ratio : 1:1
    • Bandwidth : DC to 15MHz
    • Rise Time : 23nS
    • Input Resistance 1MΩ (Oscilloscope Input Resistance)
    • Input Capacitance : 68 pF Plus oscilloscope capacitance
    • Working Voltage : 300V DC incl. peak AC derating with frequency
  • Cable Length : 1.2 Meters

Downloads

Additional Information

Group Test Probes
Device Oscilloscope Probe
Type 100MHz x1/ x10/ Ref Probe Switch Selectable
Rating x1 x10 100MHz
