HQ-002.1-M (2.5-6.0MM2 )

SKU: HQ-002.1-M (2.5-6.0MM2 )

BRAND: Wain

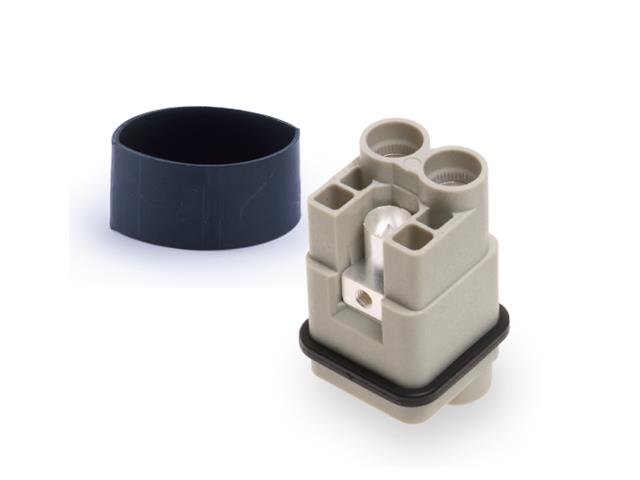

Series Q2/0 Insert 2P+E - Size 3A - Male Axial Screw Termination w/Heatshrink Tube 40A/830V for 2,5-6mm Square Wire = 09120022654

Series Q2/0 Insert 2P+E

Specifications

Product parameters

Inserts
Number of contacts 2+PE
Electrical data acc. to EN 61 984
---Rated current 40A
---Rated voltage 830V
---Rated impulse voltage 6kV
---Pollution degree 3
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-silver plated
Contact resistance ≤1mΩ
Axial screw termination
---mm2 2.5-10mm2
---AWG 14-8
Tightening torque 1.8Nm
Stripping length

8+1mm

Downloads

Additional Information

Device Insert
Type Series Q2/0 | 2P+E | Size 3A
