HQ-002.2-F (4-10MM2 )

Name: HQ-002.2-F (4-10MM2 ) - Communica [Part No: HQ-002.2-F (4-10MM2 )]
Brand: Wain
SKU: HQ-002.2-F (4-10MM2 )
Price: 297 ZAR
Availability: InStock

SKU: HQ-002.2-F (4-10MM2 )

BRAND: Wain

R 341.55_{(inc VAT)}
R 297.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

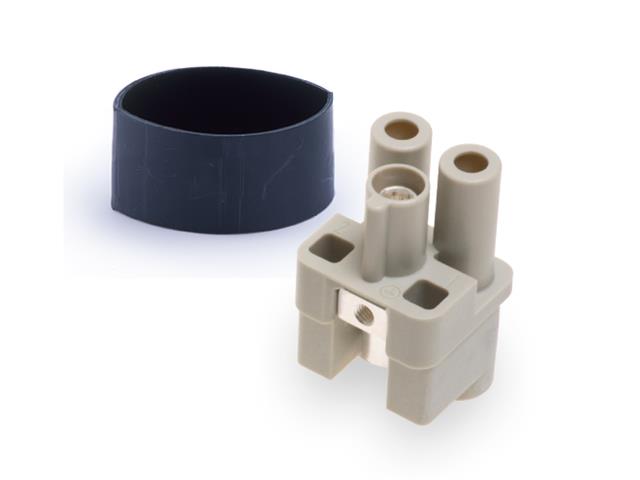

Series Q2/0 Insert 2P+E - Size 3A - Female Axial Screw Termination With Heatshrink Tube 40A/830V for 4-10mm Square Wire = 09120022752

Series Q2/0 Insert 2P+E

Specifications

Product parameters

Inserts
Number of contacts	2+PE
Electrical data acc. to EN 61 984
---Rated current	40A
---Rated voltage	830V
---Rated impulse voltage	6kV
---Pollution degree	3
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-silver plated
Contact resistance	≤1mΩ
Axial screw termination
---mm²	2.5-10mm²
---AWG	14-8
Tightening torque	1.8Nm
Stripping length	8⁺¹mm

Downloads

HQ0022F-Datasheet

Additional Information

Device	Insert
Type	Series Q2/0 \| 2P+E \| Size 3A

Elevate your electrical connections with the HQ-002.2-F Insert, designed for 4-10mm square wire. This durable, 40A-rated component ensures optimal performance with a high insulation resistance and a wide temperature range. Perfect for reliable and safe installations, it combines efficiency and safety in one compact solution.
