HQ-002.2-M (4-10MM2 )

Name: HQ-002.2-M (4-10MM2 ) - Communica [Part No: HQ-002.2-M (4-10MM2 )]
Brand: Wain
SKU: HQ-002.2-M (4-10MM2 )
Price: 297 ZAR
Availability: InStock

SKU: HQ-002.2-M (4-10MM2 )

BRAND: Wain

R 341.55_{(inc VAT)}
R 297.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

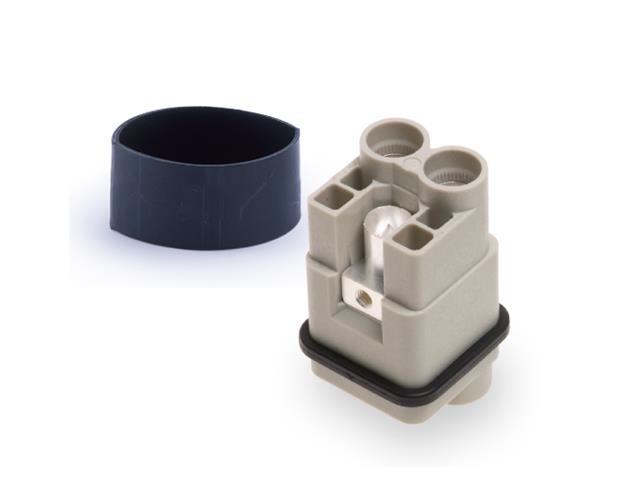

Series Q2/0 Insert 2P+E - Size 3A - Male Axial Screw Termination With Heatshrink Tube 40A/830V for 4-10mm Square Wire = 09120022652

Series Q2/0 Insert 2P+E

Specifications

Product parameters

Inserts
Number of contacts	2+PE
Electrical data acc. to EN 61 984
---Rated current	40A
---Rated voltage	830V
---Rated impulse voltage	6kV
---Pollution degree	3
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-silver plated
Contact resistance	≤1mΩ
Axial screw termination
---mm²	2.5-10mm²
---AWG	14-8
Tightening torque	1.8Nm
Stripping length	8⁺¹mm

Downloads

HQ0022M-Datasheet

Additional Information

Device	Insert
Type	Series Q2/0 \| 2P+E \| Size 3A

Upgrade your electrical connections with the HQ-002.2-M Insert, designed for 4-10mm square wire. This robust 2P+E connector offers a 40A rating and 830V voltage, ensuring reliable performance even in harsh conditions. Featuring durable materials and superior insulation, it guarantees safety and longevity, making it an essential choice for your wiring needs.
