HQ-005/0-MC

Name: HQ-005/0-MC - Communica [Part No: HQ-005/0-MC]
Brand: Wain
SKU: HQ-005/0-MC
Price: 146.34 ZAR
Availability: InStock

SKU: HQ-005/0-MC

BRAND: Wain

R 168.29_{(inc VAT)}
R 146.34_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

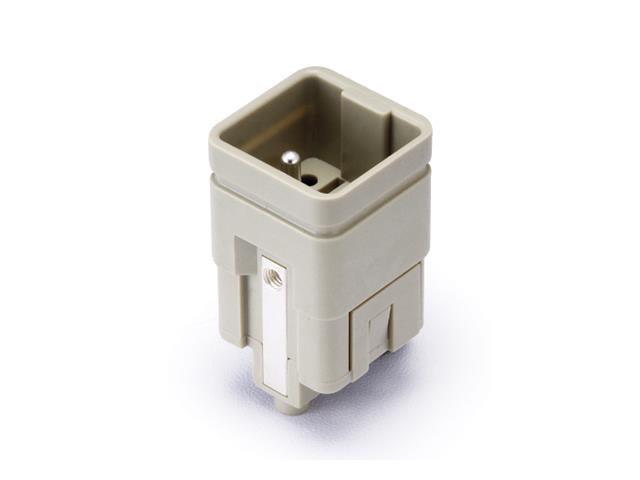

Series Q5/0 (C) Insert 5P+E - Size 3A - Male Crimp Termination 16A/230V/400V = 09120053001

Series Q5/0 (C) Insert 5P+E

Specifications

Inserts
Number of contacts	5+PE
Electrical data acc. to EN 61 984
---Rated current	16A
---Rated voltage conductor -ground	230V
---Rated voltage conductor -conductor	400V
---Rated impulse voltage	4kV
---Pollution degree	3
---Pollution degree 2 also	16A 320/500V 4kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-silver plated
Surface	hard-gold plated
Contact resistance	≤1mΩ
Crimp terminal
---mm²	0.14-2.5mm²
---AWG	26-14
PE screw terminal
---mm²	2.5mm²
---AWG	14

Downloads

HQ-005/0-MC-Datasheet

Additional Information

Device	Insert
Type	Series Q5/0 (C) \| 5P+E \| Size 3A

Enhance your electrical connections with the HQ-005/0-MC Series Q5/0 Insert. This durable 5P+E crimp termination offers reliable performance at 16A/230V/400V, ensuring safety and longevity in demanding environments. With superior insulation resistance and a robust design, it’s the perfect choice for professional applications.
