HQ-007/0-FC

Name: HQ-007/0-FC - Communica [Part No: HQ-007/0-FC]
Brand: Wain
SKU: HQ-007/0-FC
Price: 156.60 ZAR
Availability: InStock

SKU: HQ-007/0-FC

BRAND: Wain

R 180.09_{(inc VAT)}
R 156.60_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

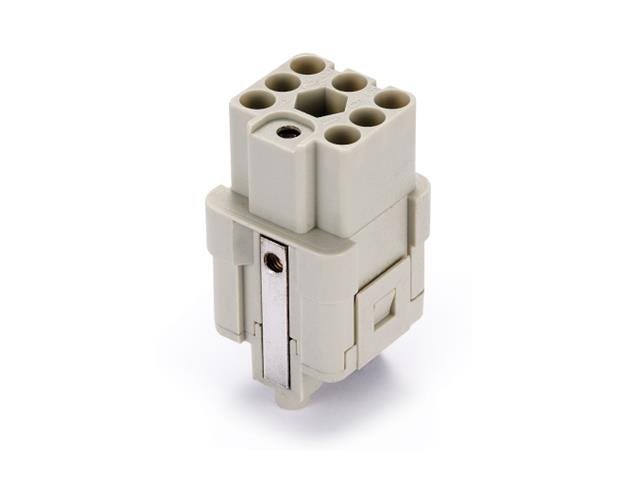

Series Q7/0 (C) Insert 7P+E - Size 3A - Female Crimp Termination 10A/400V = 09120073101

Series Q7/0 (C) Insert 7P+E

Specifications

Product parameters

Inserts
Number of contacts	7+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	400V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	10A 400/690V 6kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-silver plated
Surface	hard-gold plated
Contact resistance	≤3mΩ
Crimp terminal
---mm²	0.14-2.5mm²
---AWG	26-14
PE screw terminal
---mm²	2.5mm²
---AWG	14

Downloads

HQ-007/0-FC-Datasheet

Additional Information

Device	Insert
Type	Series Q7/0 (C) \| 7P+E \| Size 3A

Enhance your electrical connections with the HQ-007/0-FC Series Q7/0 (C) Insert. Designed for durability and efficiency, this 7P+E female crimp termination supports 10A at 400V, ensuring reliable performance across various applications. With high insulation resistance and robust materials, it offers exceptional protection against environmental factors, making it ideal for demanding setups. Upgrade your wiring solutions today!
