HQ-007/0-MC

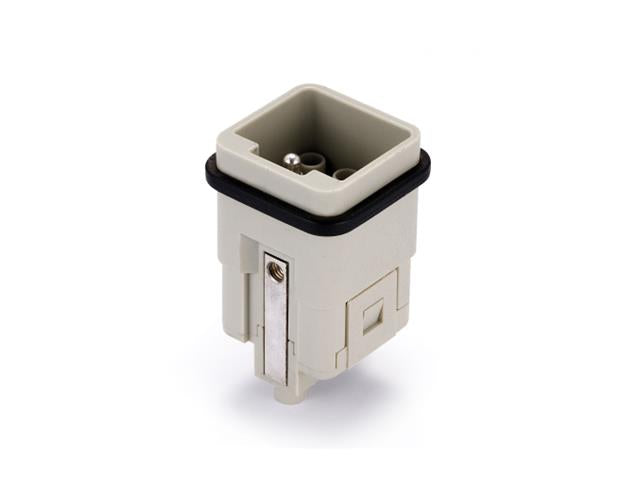

Name: HQ-007/0-MC - Communica [Part No: HQ-007/0-MC]
Brand: Wain
SKU: HQ-007/0-MC
Price: 156.60 ZAR
Availability: InStock

SKU: HQ-007/0-MC

BRAND: Wain

R 180.09_{(inc VAT)}
R 156.60_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

Series Q7/0 (C) Insert 7P+E - Size 3A - Male Crimp Termination 10A/400V = 09120073001

Series Q7/0 (C) Insert 7P+E - Size 3A

Specifications

Product parameters

Ferrule
Connector pin count	7+PE
Electrical data according to DIN EN 61984
-Rated current	10A
- rated voltage	400V
- Rated impulse voltage	6KV
- pollution level	3
Voltage rating according to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
range of working temperature	-40℃...+125℃
Flame retardant grade (UL94)	V0
Pluggable times	≥500
pin
Material	copper alloy
surface treatment	silver plated gold plated
Contact resistance	≤3mΩ
cold press connection
---mm²	0.14-2.5mm²
---AWG	26-14
PE screw connection
---mm²	2.5mm²
---AWG	14

Downloads

Datasheet - HQ-007/0-MC

Additional Information

Device	Insert
Type	Series Q7/0 (C) \| 7P+E \| Size 3A

Upgrade your electrical connections with the HQ-007/0-MC Series Q7/0 (C) Insert. This robust 7P+E connector offers reliable performance at 10A/400V, ensuring safety and durability with a flame retardant design. Ideal for a wide temperature range and built for over 500 plug cycles, it's the perfect choice for demanding applications.
