HQ-012/0-FC

Name: HQ-012/0-FC - Communica [Part No: HQ-012/0-FC]
Brand: Wain
SKU: HQ-012/0-FC
Price: 209.52 ZAR
Availability: InStock

SKU: HQ-012/0-FC

BRAND: Wain

R 240.95_{(inc VAT)}
R 209.52_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

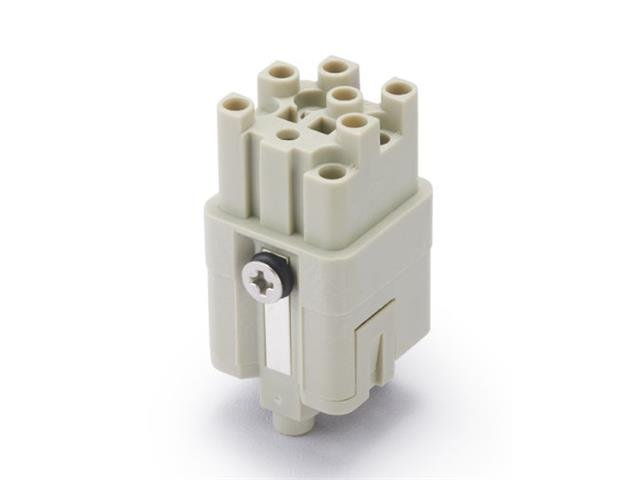

Series Q12/0 (C) Insert 12P+E - Size 3A - Female Crimp Termination 10A/400V = 09120123101

Series Q12/0 (C) Insert 12P+E

Specifications

Product parameters

Ferrule
Connector pin count	12+PE
Electrical data according to DIN EN 61984
-Rated current	10A
- rated voltage	400V
- Rated impulse voltage	6KV
- pollution level	3
Voltage rating according to UL/CSA	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
range of working temperature	-40℃...+125℃
Flame retardant grade (UL94)	V0
Pluggable times	≥500
pin
Material	copper alloy
surface treatment	silver plated gold plated
Contact resistance	≤3mΩ
cold press connection
---mm²	0.14-2.5mm²
---AWG	26-14
PE screw connection
---mm²	0.5-2.5mm²
---AWG	20-14

Downloads

Datasheet - HQ-012/0-FC

Additional Information

Device	Insert
Type	Series Q12/0 (C) \| 12P+E \| Size 3A

Elevate your electrical connections with the HQ-012/0-FC Series Q12/0 (C) Insert. This robust 12P+E connector offers a reliable 10A capacity and is built to withstand extreme temperatures from -40℃ to +125℃. Designed for durability with flame-retardant polycarbonate, it ensures safe and efficient performance for all your wiring needs.
