HQ-012/0-MC

Name: HQ-012/0-MC - Communica [Part No: HQ-012/0-MC]
Brand: Wain
SKU: HQ-012/0-MC
Price: 209.52 ZAR
Availability: InStock

SKU: HQ-012/0-MC

BRAND: Wain

R 240.95_{(inc VAT)}
R 209.52_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

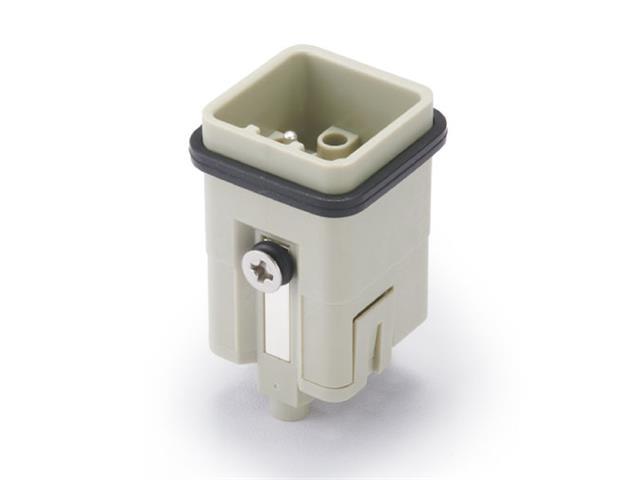

Series Q12/0 (C) Insert 12P+E - Size 3A - Male Crimp Termination 10A/400V = 09120123001

Series Q12/0 (C) Insert 12P+E

Specifications

Product parameters

Inserts
Number of contacts	12+PE
Electrical data acc. to EN 61 984
---Rated current	10A
---Rated voltage	400V
---Rated impulse voltage	6kV
---Pollution degree	3
---Pollution degree 2 also	10A 400/690V 6kV 2
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-silver plated
Surface	hard-gold plated
Contact resistance	≤3mΩ
Crimp terminal
---mm²	0.14-2.5mm²
---AWG	26-14
PE contact	Screw terminal
---mm²	0.5-2.5mm²
---AWG	20-14

Downloads

Datasheet - HQ-012/0-MC

Additional Information

Device	Insert
Type	Series Q12/0 (C) \| 12P+E \| Size 3A

The HQ-012/0-MC Series Q12/0 (C) Insert offers reliable 12P+E male crimp termination for efficient electrical connections. With a robust design rated at 10A and 400V, it ensures high performance and durability for various applications. Perfect for both industrial and commercial use, this insert guarantees safety and longevity, making it an essential component for your electrical projects.
