HSB-006-F

Name: HSB-006-F - Communica [Part No: HSB-006-F]
Brand: Wain
SKU: HSB-006-F
Price: 418.50 ZAR
Availability: InStock

SKU: HSB-006-F

BRAND: Wain

R 481.28_{(inc VAT)}
R 418.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over ZAR 1,000.00

Collections: Connectors

Type: Power Connectors

Category: Heavy Duty Power Connector Inserts & Modules

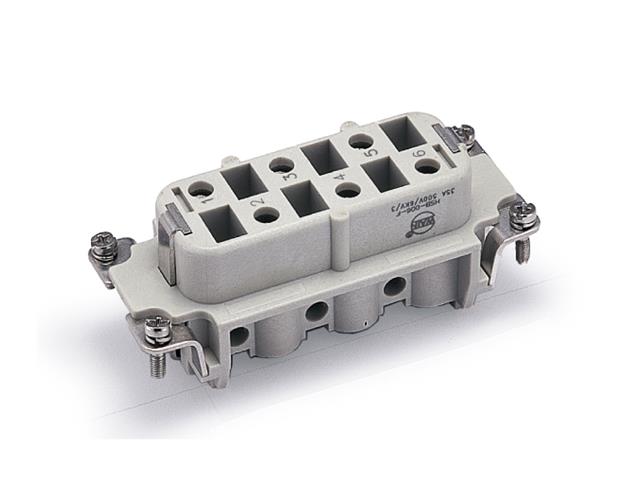

Series 6HsB Insert 6P+E - Size 16B - Female Screw Termination With Wire Protection 35A/400V/690V = 09310062701

Series 6HsB Insert 6P+E

Specifications

Product parameters

Inserts
Number of contacts	6+PE
Electrical data acc. to EN 61 984
---Rated current	35A
---Rated voltage conductor - ground	400V
---Rated voltage conductor - conductor	690V
---Rated impulse voltage	6kV
---Pollution degree	3
---or	35A 500V 6kV 3
Rated voltage acc. to UL	600V
Insulation resistance	≥10¹⁰Ω
Material	polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability acc. to UL 94	V0
Mechanical working life(mating cycles)	≥500
Contacts
Material	copper alloy
Surface	hard-silver plated
Contact resistance	≤1mΩ
Screw terminal
---Wrie gauge	1.5-6mm²
---AWG	10
---Tightening torque	1.2Nm

Downloads

HSB-006-F-Datasheet

Additional Information

Device	Insert
Type	Series 6HsB \| 6P+E \| Size 16B

Enhance your electrical connections with the HSB-006-F Series 6HsB Insert. This robust 6P+E connector features a durable polycarbonate body, rated for 35A and 690V, ensuring reliable performance in demanding environments. With superior wire protection and easy screw termination, it's perfect for commercial and industrial applications. Upgrade your wiring solutions today!
