HSB-006-M

SKU: HSB-006-M

BRAND: Wain

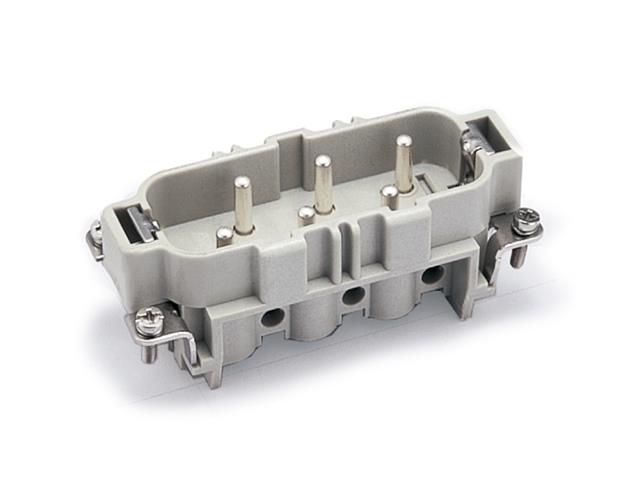

Series 6HsB Insert 6P+E - Size 16B - Male Screw Termination With Wire Protection 35A/400/690V = 09310062601

Series 6HsB Insert 6P+E

Specifications

Product parameters

Inserts
Number of contacts 6+PE
Electrical data acc. to EN 61 984
---Rated current 35A
---Rated voltage conductor - ground 400V
---Rated voltage conductor - conductor 690V
---Rated impulse voltage 6kV
---Pollution degree 3
---or 35A 500V 6kV 3
Rated voltage acc. to UL 600V
Insulation resistance ≥1010Ω
Material polycarbonate
Limiting temperatures -40℃...+125℃
Flammability acc. to UL 94 V0
Mechanical working life(mating cycles) ≥500
Contacts
Material copper alloy
Surface hard-silver plated
Contact resistance ≤1mΩ
Screw terminal
---Wrie gauge 1.5-6mm²
---AWG 10
---Tightening torque 1.2Nm

Downloads

Additional Information

Device Insert
Type Series 6HsB | 6P+E | Size 16B
