HV9123NG

Name: HV9123NG - Communica [Part No: HV9123NG]
Brand: Communica
SKU: HV9123NG
Price: 35.47 ZAR
Availability: InStock

SKU: HV9123NG

BRAND: Communica

R 40.79_{(inc VAT)}
R 35.47_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Semiconductors

Type: Power Management ICs

Category: PWM Controller ICs

HV Current Mode PWM 10V-450V SO16

Specifications

Output Type	Transistor Driver
Function	Step-Up/Step-Down
Output Configuration	Positive
Topology	Flyback
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	10V ~ 450V
Frequency - Switching	3MHz
Duty Cycle (Max)	97%
Synchronous Rectifier	No
Clock Sync	No
Control Features	Enable, Frequency Control, Reset
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount

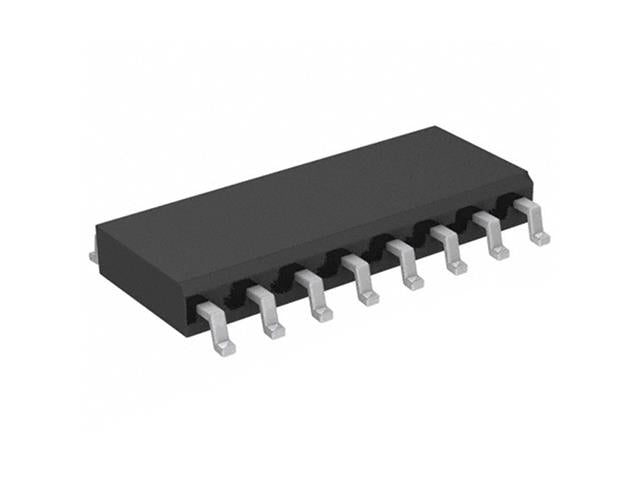

Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC

Additional Information

Device

IC

Elevate your power management with the HV9123NG, a high-voltage current mode PWM driver. Designed for efficiency with a wide supply range of 10V-450V and a fast switching frequency of 3MHz, it delivers reliable performance for step-up/step-down applications. Its compact SO16 package ensures easy surface mounting, making it ideal for various electronic projects. Experience exceptional control and reliability in your designs today!
