IDE 40892

Name: IDE 40892 - Communica [Part No: IDE 40892]
Brand: Ide
SKU: IDE 40892
Price: 204 ZAR
Availability: InStock

SKU: IDE 40892

BRAND: Ide

R 234.60_{(inc VAT)}
R 204.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Industrial Enclosures

Category: IP65 Industrial Enclosures

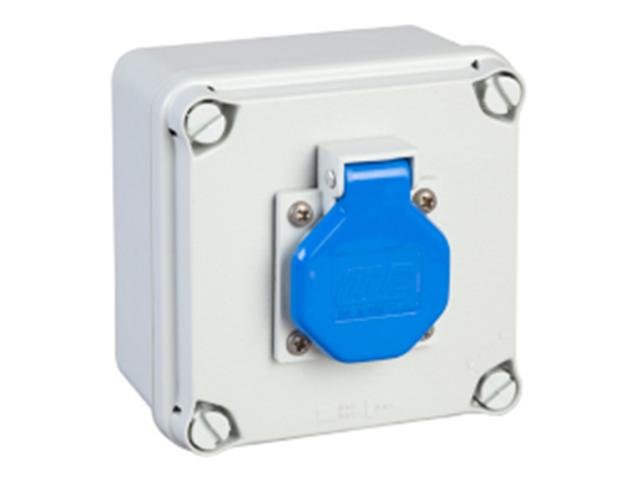

Enclosure IP65 108 x108x64mm Tight Box with Premoulded Cable Entries Fitting for Schuko Socket

Enclosure - IP65 108 X 108 X 64mm Tight Box

Specifications

Characteristics:

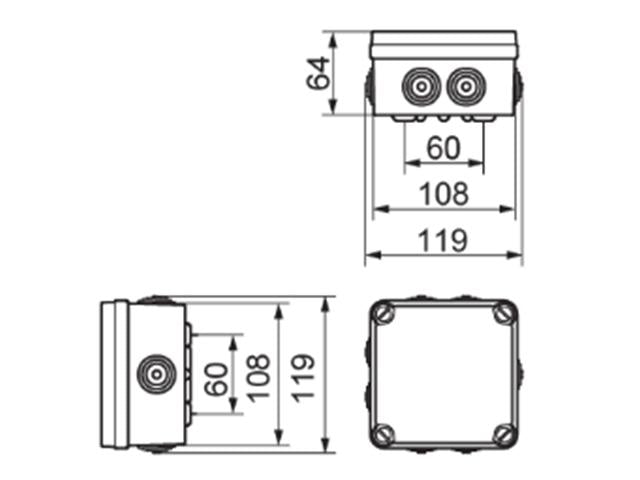

Exterior dimensions (Height x Width x Depth) : 108x108x64 mm
Installation : Surface
Color : RAL 7035 grey
Window : Opaque cover
Weight (Kg) : 0,2
Cable entry : 7xM25
Components : 1 IP44 Schuko-type socket 2P+E 16A
Materials : Halogen-free plastic materials. Base and cover: Shock-proof PSv

Technical data:

Degree of protection : IP44
Resistance to impact : IK07
Glow wire resistance : 650 ºC
Ball pressure test : 70 ºC
Ambient temperature range : -25 ºC / +40 ºC
Maximum operating voltage : 1000 V AC / 1500 V DC

Downloads

Datasheet - 40892 - en

Additional Information

Device	Enclosure
Type	108 X 108 X 64mm \| Tight Box \| Premoulded Cable
Highlights	for Schuko Socket
Dimensions	108 X 108 X 64mm

Discover the IDE 40892 enclosure, a durable IP65-rated tight box ideal for Schuko sockets. Measuring 108 x 108 x 64mm, this compact and robust solution ensures reliable protection against dust and water, making it perfect for indoor and outdoor use. With pre-moulded cable entries and shock-proof materials, it guarantees safety and efficiency for your electrical installations.
