IDE GN806030

Name: IDE GN806030 - Communica [Part No: IDE GN806030]
Brand: Ide
SKU: IDE GN806030
Price: 3977.50 ZAR
Availability: OutOfStock

SKU: IDE GN806030

BRAND: Ide

Sold Out
R 4,574.13_{(inc VAT)}
R 3,977.50_{(ex VAT)}

Collections: Enclosures

Type: Industrial Enclosures

Category: IP65 Industrial Enclosures

Enclosure IP65 IK09 Steel Plated 2mm Thick 800x600x300mm Argenta Series

Enclosure IP65 IK09 Steel Plated 2mm Thick 800 X 600 X 300mm

Specifications

Characteristics:

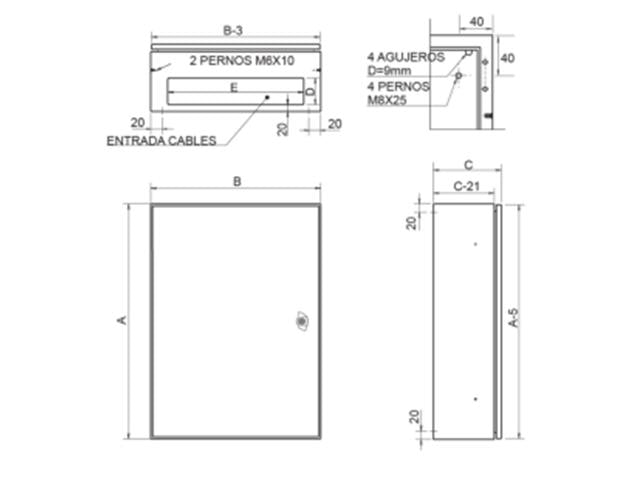

Dimensions cabinet : (AxBxC) 800x600x300 mm
Installation : Surface
Type of door : Single opaque door
Locking : 5-mm double-bit lock - Two 1-point lock
Finish : Coated with hardened epoxy-polyester paint, embossed, 80-120 ?
Colour : RAL 7035 grey
Mounting plate : With flat mounting plate. 2-mm galvanised sheet steel
Weight (Kg) : 32,8
Materials : Cold-rolled steel EN10130+A1

Technical data:

Degree of protection : IP66 / NEMA 1, 12, 4
Resistance to impact : IK10
Ambient temperature range : -25ºC / +40ºC
Maximum operating voltage : 1000 V AC

Downloads

Datasheet - GN806030 - en

Additional Information

Device	Enclosure
Type	IP65 \| IK09 \| Steel Plated \| 2mm Thick \| 800 X 600 X 300mm
Highlights	Argenta Series
Dimensions	800 X 600 X 300mm

Discover the IDE GN806030 Enclosure, designed for superior protection with an IP65 rating and IK09 impact resistance. Crafted from 2mm thick steel with a durable epoxy-polyester finish, this 800x600x300mm enclosure is perfect for safeguarding your electrical components in demanding environments. Enjoy peace of mind with its reliable locking mechanism and robust construction, ideal for both indoor and outdoor use.
